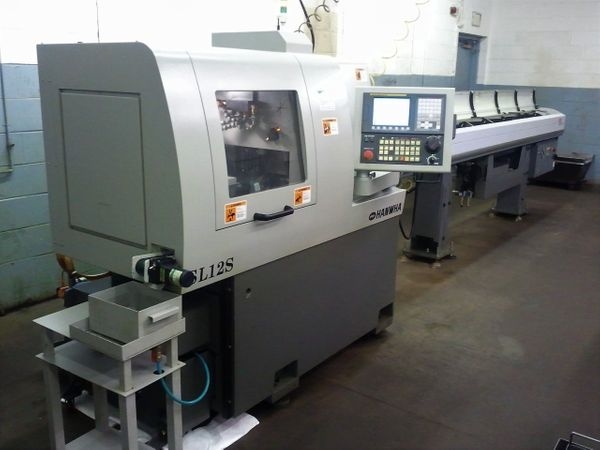

Pre-owned HANWHA SL12S 2010 CNC Lathe. This CNC Lathe has POWER ON: 10,134 OPERATING TIME: 103 CUTTING TIME: 62 cutting time and is equipped with a Fanuc Series Oi-TC control. This CNC Machine is currently located in New Yor...Read More
Notify Me:
Rigging:
$1,000
Specs:
Bar Capacity: 0.5"
Spindle Speed: 12,000 RPM
Rapid Rate Z Axis: 0 IPM
Rapid Rate X Axis: 0 IPM
Stroke: 140mm
Additional Positive Brake: 1 degree
SUB SPINDLE:
Max Turning Diameter: 12mm (1/2")
Max Spindle Speed: 8,000 rpm
Stroke: 140mm
Max front ejection length: 50mm
TOOLING:
OD Tools: 6
Front Working Tools: 3
Back Working Tools: 3
Cross Driven Tools: 3
Max Drilling Diameter (front/back): 7mm
Max Tapping Diameter (front/back): M6
Max Drilling Diameter (cross): 7mm
Max Tapping Diameter (Cross): M5
Max Slotting Diameter (cross): 30mm
MOTORS:
Main Spindle: 1.5 / 2.2 kW
Sub Spindle: 0.65 / 1.1 kW
Cross Driven Tools: 0.4 kW
Servo Motor: 0.3 0.5 kW
Coolant Motor: 250 W
Lubrication Pump: 3 W
Power Consumption: 5 kW
Coolant tank Capacity: 140 L (37 gal)
Lubrication tank Capacity: .8 L (.2 gal)
Dimensions (approx - L x W x H): 67" x 51" x 69"
Weight (approx): 4200 lbs
Spindle Speed: 12,000 RPM
Rapid Rate Z Axis: 0 IPM
Rapid Rate X Axis: 0 IPM
Stroke: 140mm
Additional Positive Brake: 1 degree
SUB SPINDLE:
Max Turning Diameter: 12mm (1/2")
Max Spindle Speed: 8,000 rpm
Stroke: 140mm
Max front ejection length: 50mm
TOOLING:
OD Tools: 6
Front Working Tools: 3
Back Working Tools: 3
Cross Driven Tools: 3
Max Drilling Diameter (front/back): 7mm
Max Tapping Diameter (front/back): M6
Max Drilling Diameter (cross): 7mm
Max Tapping Diameter (Cross): M5
Max Slotting Diameter (cross): 30mm
MOTORS:
Main Spindle: 1.5 / 2.2 kW
Sub Spindle: 0.65 / 1.1 kW
Cross Driven Tools: 0.4 kW
Servo Motor: 0.3 0.5 kW
Coolant Motor: 250 W
Lubrication Pump: 3 W
Power Consumption: 5 kW
Coolant tank Capacity: 140 L (37 gal)
Lubrication tank Capacity: .8 L (.2 gal)
Dimensions (approx - L x W x H): 67" x 51" x 69"
Weight (approx): 4200 lbs
Options:
Fanuc Series Oi-TC
Bar Feeder
Parts Catcher
Live Tooling
Sub Spindle
5 Axis
MTA International Bar Feeder
Bar Feeder
Parts Catcher
Live Tooling
Sub Spindle
5 Axis
MTA International Bar Feeder
