2020 HANWHA XD42N

ID:7242
Brand:HANWHA
Model: XD42N
Year:2020
Category:CNC Lathe
Location:USA

Located In USA

HANWHA XD42N AI Chat

Machine Overview

Specs:

Bar Capacity: 1.77"
Spindle Speed: 6,000 RPM
Spindle Motor: 10 HP
Turret Tools: 24 Station
MAXIMUM TURNED DIAMETER: 45MM
X (1) AXIS TRAVEL: 80MM
X (2) AXIS TRAVEL: 395MM
Y AXIS TRAVEL: 472MM
Z (1) AXIS TRAVEL: 320MM
Z (2) AXIS TRAVEL: 276MM
MAXIMUM MAIN SPINDLE SPEED: 6000RPM
MAIN SPINDLE POWER: 5.5/7.5KW
MAXIMUM SUB SPINDLE SPEED: 6000RPM
SUB SPINDLE POWER: 2.2/5.5KW
NUMBER OF TOOLS: 24
TOOL SHANK: 20 X 20MM
CROSS DRILL MAX SPEED: 6000RPM
CROSS SLIDE POWER: 2.2KW
COOLANT TANK CAPACITY: 230 LITRE
PUMP POWER 1.1KW
POWER CONSUMPTION 25KVA
AIR FLOW RATE: 120~150 LITRE/MIN
MACHINE DIMENSIONS (L X W X H) 2580 X 1690 X 1750
MACHINE WEIGHT 4100KG
Dimensions: 102" x 67" x 69"
Weight: 9,038 LBS

Options:

Fanuc-i
Chip Conveyor
Bar Feeder
Parts Catcher
Live Tooling
Sub Spindle
Y Axis
5 Axis

Description:

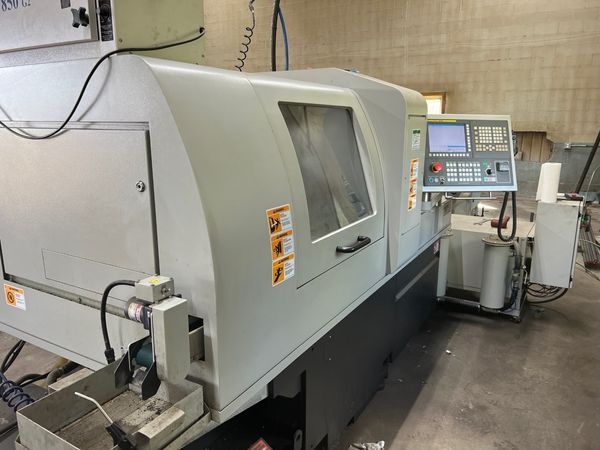

Pre-owned HANWHA XD42N 2020 CNC Lathe. This CNC Lathe has average cutting time and is equipped with a Fanuc-i control. This CNC Machine is currently located in USA. This HANWHA CNC Lathe is available for a limited time. Get a quote today on this XD42N before it's gone.
