Machine Overview

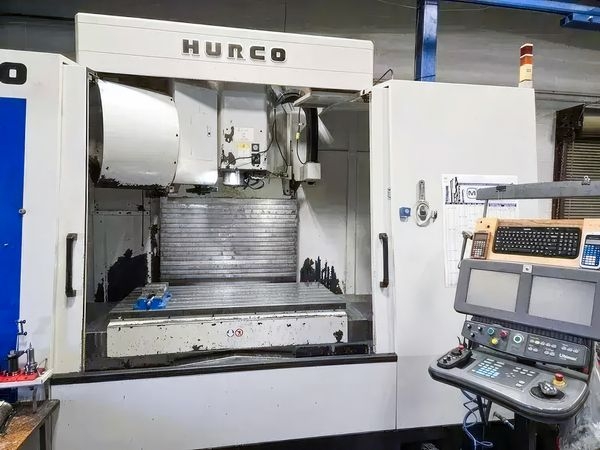

This 2006 HURCO VMX64 is a formidable machine tool designed for precision machining tasks. It is equipped with a large table working surface measuring 35" x 66" (1,676 x 889mm) and can handle a maximum weight of up to 6,000 lbs, making it suitable for large components.
The machine’s X-axis provides a generous table travel of 64" (1,625mm), while the Y-axis (cross) offers 34" (864mm) of movement. It also features vertical column travel along the Z-axis measuring 30" (762mm), with a spindle nose that ranges from as close as 6" to as far as 36" to the table. The spindle center extends 38" to the column, utilizing a versatile CAT 40 spindle taper.
This model supports production changes with its 24-tool capacity, managed through a dual arm side-mounted tool changer. The spindle operates at speeds up to 10,000 RPM in two adjustable ranges, supported by a robust 24 HP AC drive motor. Smooth and precise cutting feed rates along X, Y, and Z axes range from 0.01 to 530 inches per minute (IPM), while rapid feed rates reach 709 IPM for X and Y axes, and 530 IPM for the Z-axis.
The machine dimensions are approximately 175" x 114" x 131.9", with an overall weight of about 30,000 lbs, reflecting its sturdy build. It comes equipped with the Hurco Ultimax Conversational Control system, offering intuitive software for programming and operation.
For enhanced performance and reduction in tool wear, it features coolant through the spindle, alongside a reliable coolant system. The AC servo motors on all axes ensure precision in motion control, contributing to consistent and accurate machining.
If you're searching for dependable performance and advanced control in machining, the 2006 HURCO VMX64 will undoubtedly meet those requirements with its robust functionality and advanced features.
