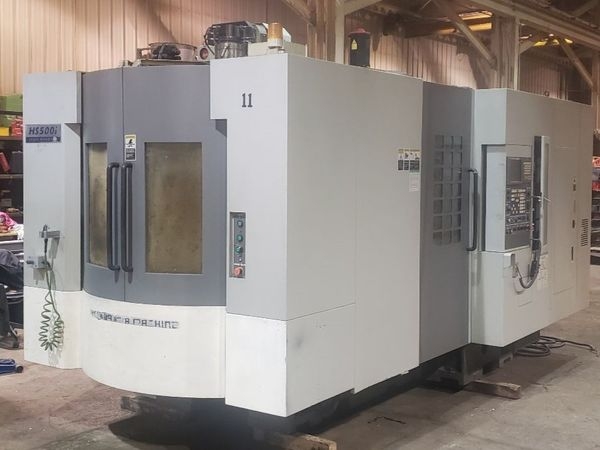

Pre-owned HYUNDAI KIA HS500I 2007 Horizontal Machining Center. This Horizontal Machining Center has average cutting time and is equipped with a Fanuc 21-iM Control control. This CNC Machine is currently located in USA. This H...Read More
Notify Me:
Specs:
Pallet Size: 19.69" X 19.69"
Least indexing angle: .001"
Max load of pallet: 1102 lbs
Distance from Center of Spindle to table surface: 50mm - 750mm
Distance from spindle nose to center of table: 150mm - 750mm
X-Axis Travel: 33.5"
Y-Axis Travel: 27.6"
Z-Axis Travel: 29.5"
Spindle Taper: 40
Spindle Speed Max: 15,000 RPM
60 ATC tool changer
Least indexing angle: .001"
Max load of pallet: 1102 lbs
Distance from Center of Spindle to table surface: 50mm - 750mm
Distance from spindle nose to center of table: 150mm - 750mm
X-Axis Travel: 33.5"
Y-Axis Travel: 27.6"
Z-Axis Travel: 29.5"
Spindle Taper: 40
Spindle Speed Max: 15,000 RPM
60 ATC tool changer
Options:
Fanuc 21-iM Control
Chip Conveyor
Coolant Thru Spindle
(Tombstones not included)
High pressure coolant Pump
Chip Conveyor
Coolant Thru Spindle
(Tombstones not included)
High pressure coolant Pump
