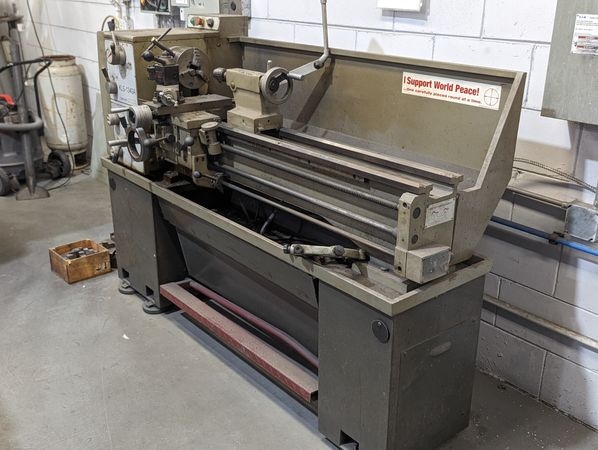

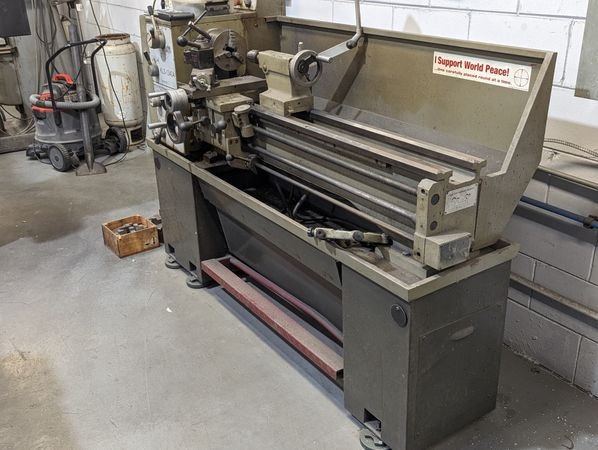

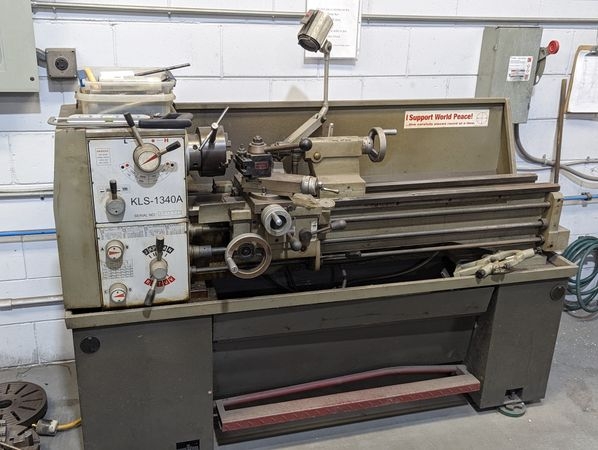

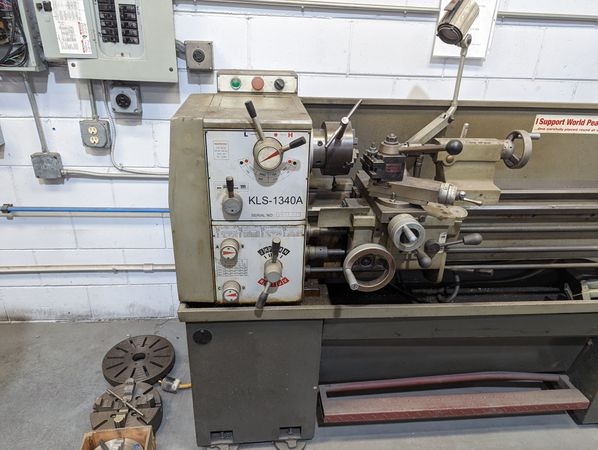

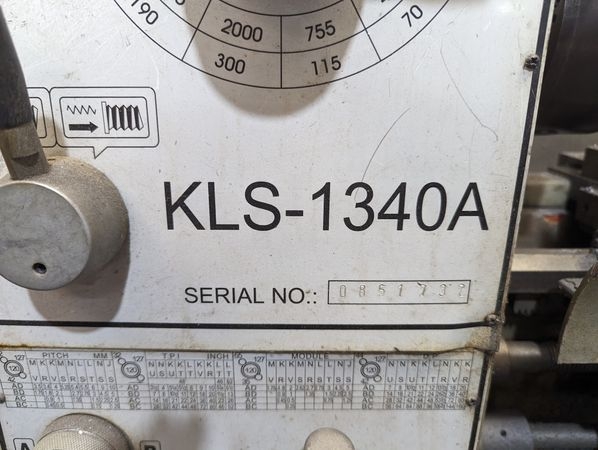

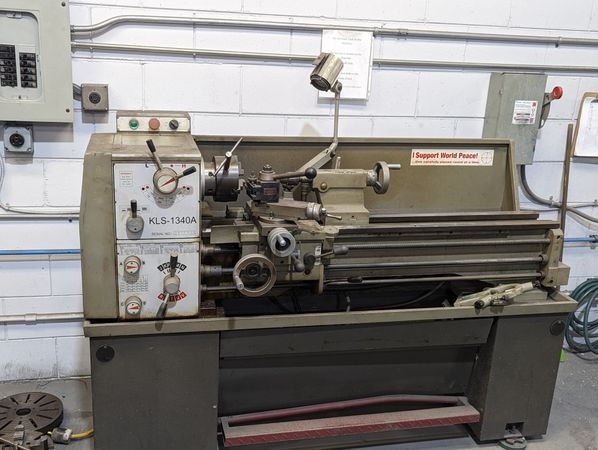

2010 KENT KLS1340A #7682

Swing Over Bed 13"
Swing Over Cross Slide 7-1/4""
Swing Over Gap 18-3/4"
Width of Bed 7-3/8"
Distance Between Centers 40"
Cross Slide Travel 6-1/2"
Top Slide Travel 3"

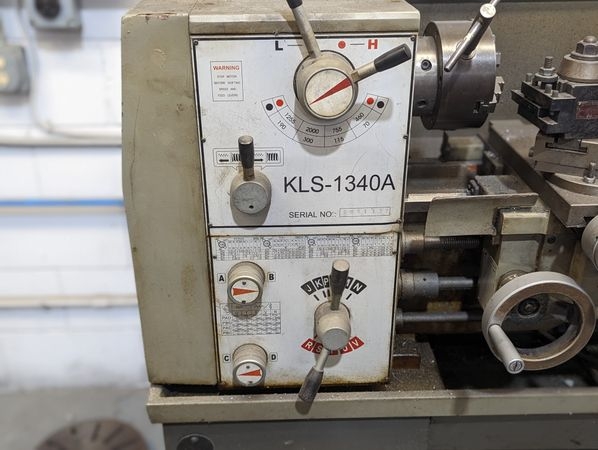

Spindle Speeds 8

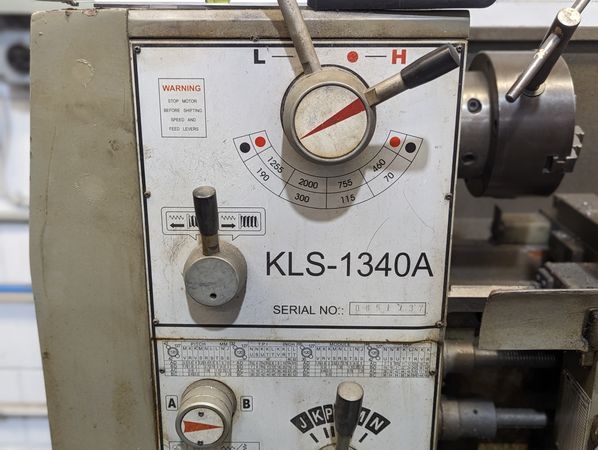

Spindle Speed Range 70-2000 RPM
Through Hole Diameter 1-1/2"
Spindle Nose D1-4 Camlock
Spindle Bore Taper MT#5
Thread – Standard (Whit-worth) 32 (4–56) TPI

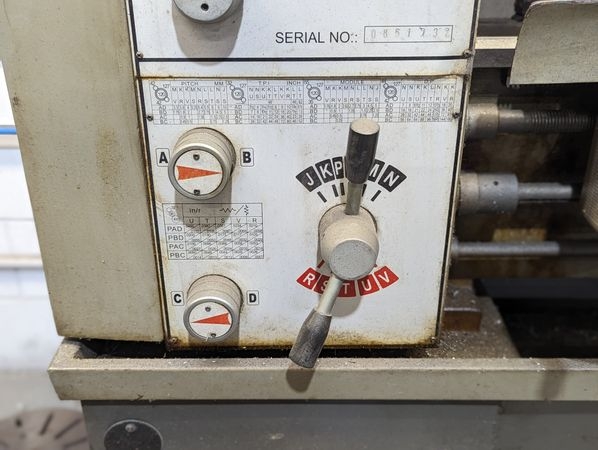

Longitudinal Feed 0.0032”-0.1067” in/rev
Cross Feed 0.00086”-0.0367” in/rev
Lead Screw Diameter 7/8"
Threading Pitch 8 TPI
Quill Travel 3-5/8"
Quill Diameter 1-1/2"
Quill Bore Taper MT#3

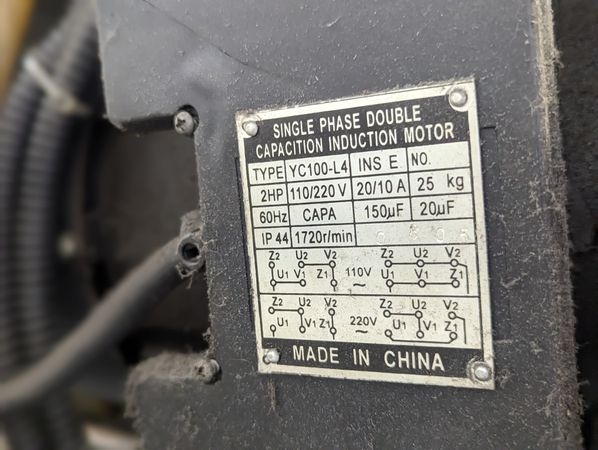

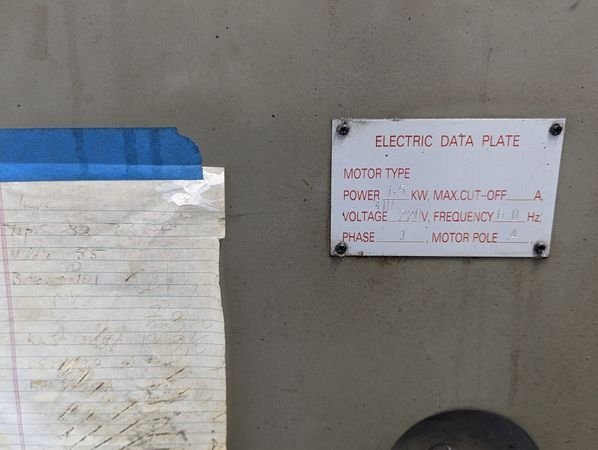

Main Motor 2 HP (110V or 220V, 1-phase)
Coolant Pump Motor 1/8 HP
Dimensions: 80" x 35" x 61"
Weight: 1,310
