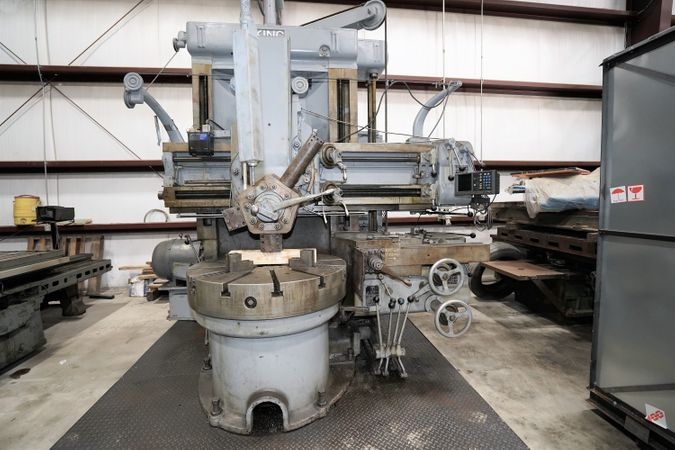

Pre-owned KING 42 VTL 1999 CNC Lathe. This CNC Lathe has average cutting time and is equipped with a NA control. This CNC Machine is currently located in Florida. This KING CNC Lathe is available for a limited time. Get a quote today on this 42 VTL before it's gone.
Notify Me:
Specs:
Diameter of Chuck: 42”
Max. Swing W Side Head: 47.5”
Max. Height Under Rail: 43.5”
Cross Rail, Vertical Travel: 25”
(16) Table Speeds: 200 RPM
Turret Head Travel (L-R) 30-3/8”
Swivel of Turret head each way: 30 Degrees
Turret Head Travel (Vertical): 37”
Max. Distance Table to Turret Face: 48-1/2”
Turret Head Positions: 5
Side Head Travel (In & Out): 24”
Side Head Travel (Vertical): 37”
Side Head Ram Size: 6” Square
Motor Size: 30 HP 220/440 Volt (at 440 volts now)
Weight: 37,500 lbs
Product AUTO ID: 2878
Max. Swing W Side Head: 47.5”
Max. Height Under Rail: 43.5”
Cross Rail, Vertical Travel: 25”
(16) Table Speeds: 200 RPM
Turret Head Travel (L-R) 30-3/8”
Swivel of Turret head each way: 30 Degrees
Turret Head Travel (Vertical): 37”
Max. Distance Table to Turret Face: 48-1/2”
Turret Head Positions: 5
Side Head Travel (In & Out): 24”
Side Head Travel (Vertical): 37”
Side Head Ram Size: 6” Square
Motor Size: 30 HP 220/440 Volt (at 440 volts now)
Weight: 37,500 lbs
Product AUTO ID: 2878
