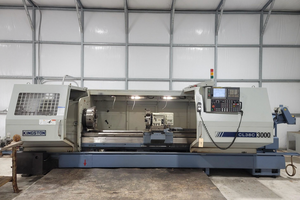

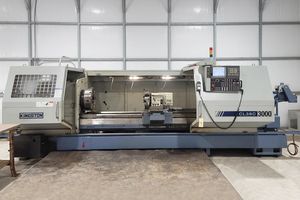

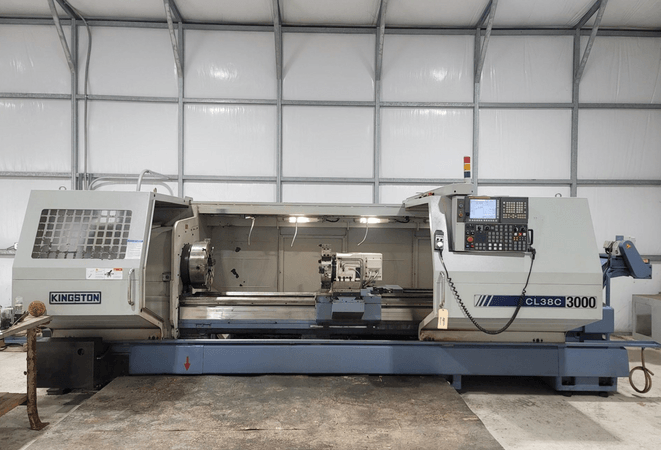

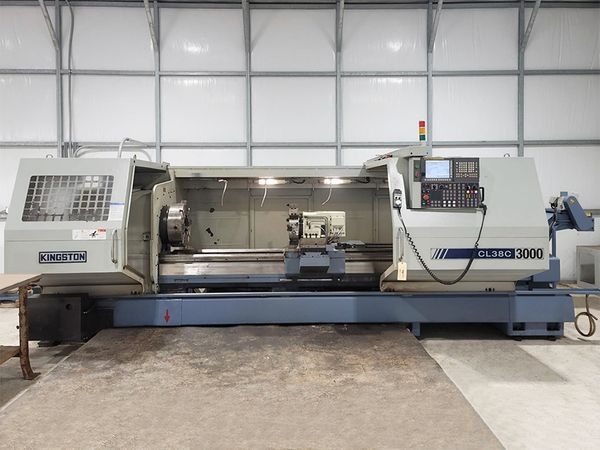

2019 KINGSTON CL38CX3000

Swing Over Bed: 26 in (660 mm)
Distance Between Centers: 120 in (3,000 mm)
Bar / Spindle Bore Capacity: 7.2 in (183 mm)
Chuck Size (Front): 20 in 4-jaw independent
Chuck Size (Rear): 24 in 4-jaw independent
Steady Rests: 9.25 in capacity and 15.9 in capacity
Spindle Nose: A2-15 (typical for CL38C)
Spindle Motor: 30 HP AC (22.4 kW)
Spindle Speed Range: 3 – 1,000 RPM (variable)
Spindle Bore Through: 7.2 in (183 mm)
Turret Configuration: Dual turret system –
Front: Vertical 8-position,
Rear: Horizontal 6-position
Turret Index Time: 1 sec per index (typical hydraulic type)
Tailstock: Hydraulic quill, programmable position
X-Axis Travel: 21.2 in (540 mm)
Z-Axis Travel: 126.8 in (3,220 mm)
Rapid Traverse – X Axis: 591 IPM (15 m/min)
Rapid Traverse – Z Axis: 787 IPM (20 m/min)
Maximum Turning Diameter: 14.17 in (360 mm)
Maximum Turning Length: 117 – 120 in (2,972 – 3,048 mm)
Control System:FANUC 0i-TF with Manual Guide i, 8.4" LCD
Coolant System:Standard flood type
Chip Conveyor: Included
Electrical Requirements: 230/460 V, 3 phase, 60 Hz
Table with turret tooling package
Two steady rests (9.25" and 15.9"capacity)
20" front & 24" rear 4-jaw chucks
Hydraulic tailstock
Chip conveyor
Fanuc 0i-TF control with manual guide i
Dual turret setup (front 8-station, rear 6-station)
Machine Dimensions (Approx.)
273 in L × 91 in W × 79 in H
Approx. Machine Weight 18,000 – 18,500 lbs

Fanuc 0i-TC CNC Control
Chip Conveyor
Tailstock
