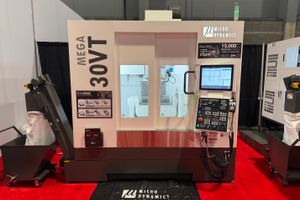

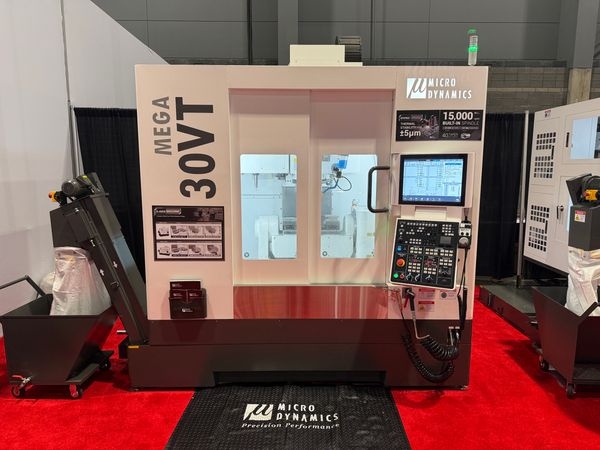

2026 MICRO DYNAMICS MEGA 30VT

X Axis Travel: 30"
Y Axis Travel: 20"
Z Axis Travel: 17.3"
Spindle Motor: 41 HP
Spindle Speed: 15,000 RPM
Spindle Taper: CAT40
Tool Changer: 40 ATC
Rapid Rate X Axis: 1,889 IPM
Rapid Rate Y Axis: 1,889 IPM
Rapid Rate Z Axis: 1,889 IPM
Spindle Nose to Table: 1.97 x 19.3"
Spindle Center to Column Front: 21.7"
A Axis: 40 - 120 deg
C Axis: 360 deg
Rapid Feedrate A Axis: 25 RPM
Rapid Feedrate C Axis: 33 RPM
Min Table Index Unit: 0.0001 deg
Tool Selection: Bi-Directional / Random
Table Height from Ground: 43.6"
Max Cutting Torque: 104 ft/lbs
Clamping Force: 2,636 lbf
Rigid Tapping Max Speed: 6,000 RPM
Pneumatic Supply: 10.6 cfm
Cutting Coolant Pump Motor: 1.5 HP
Base Wash Pump Motor: 1.5 HP
CTS Pump Motor: 4 HP
Coolant Tank Capacity: 79 gal
Positioning Accuracy: 0.0002" (VDI 3441)
Repeatability: 0.0001"
Power Consumption (220V / 3 Phase): 30 KVA
Table Size: 19.7" x 11.8"
Max Table Load: 331 LBS
Dimensions: 90.3" x 119.8" x 117.1"
Weight: 14,000 LBS

Mitsubishi M830VW
Chip Conveyor
5 Axis
8.7" Dia Roller-Cam Trunnion Table
15" Touch Screen
