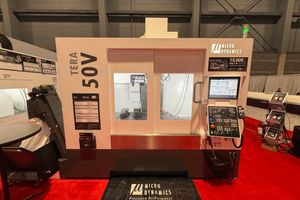

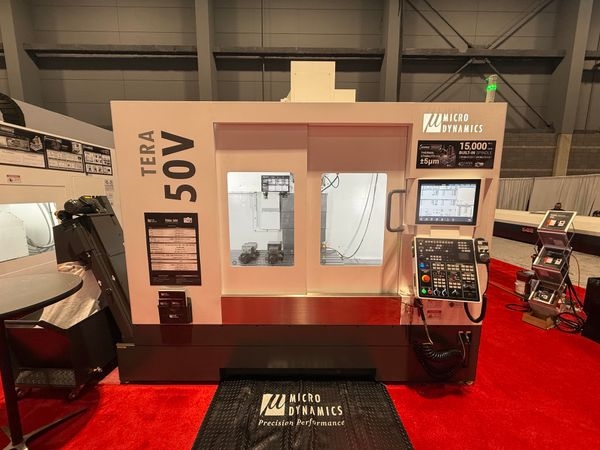

2026 MICRO DYNAMICS TERA 50V
- ID:15937
- Brand:MICRO DYNAMICS
- Model: TERA 50V
- Year:2026
- Category:Vertical Machining Center
- Location:Texas
Machine Overview
Y Axis Travel: 28"
Z Axis Travel: 25"
Spindle Motor: 41 HP
Spindle Speed: 15,000 RPM
Spindle Taper: 40
Tool Changer: 40 ATC
Rapid Rate X Axis: 2,047 IPM
Rapid Rate Y Axis: 2,047 IPM
Rapid Rate Z Axis: 1,889 IPM
Spindle Nose to Table: 3.9 - 29"
Spindle Center to Column Front: 28.9"
Tool Selection: Bi-Directional / Random
Table Height from Ground: 35.4"
Max Cutting Torque: 104 ft/lbs
Clamping Force: 2,636 lbf
Rigid Tapping Max Speed: 6,000 RPM
Pneumatic Supply: 10.6 cfm
Cutting Coolant Pump Motor: 1.5 HP
Base Wash Pump Motor: 1.5 HP
CTS Pump Motor: 4 HP
Coolant Tank Capacity: 106 gal
Positioning Accuracy: 0.0002" (VDI 3441)
Repeatability: 0.0001"
Power Consumption (220V / 3 Phase): 40 KVA
Table Size: 55.9" x 27.6"
Max Table Load: 3,307 LBS
Dimensions: 97.6" x 142" x 116.3"
Weight: 18,960 LBS
Pre-owned MICRO DYNAMICS TERA 50V 2026 Vertical Machining Center. This Vertical Machining Center has average cutting time and is equipped with a CNC control. This CNC Machine is currently located in Florida. This MICRO DYNAMICS Vertical Machining Center is available for a limited time. Get a quote today on this TERA 50V before it's gone.
