Seller Needs:
$13,225|
274
|
0

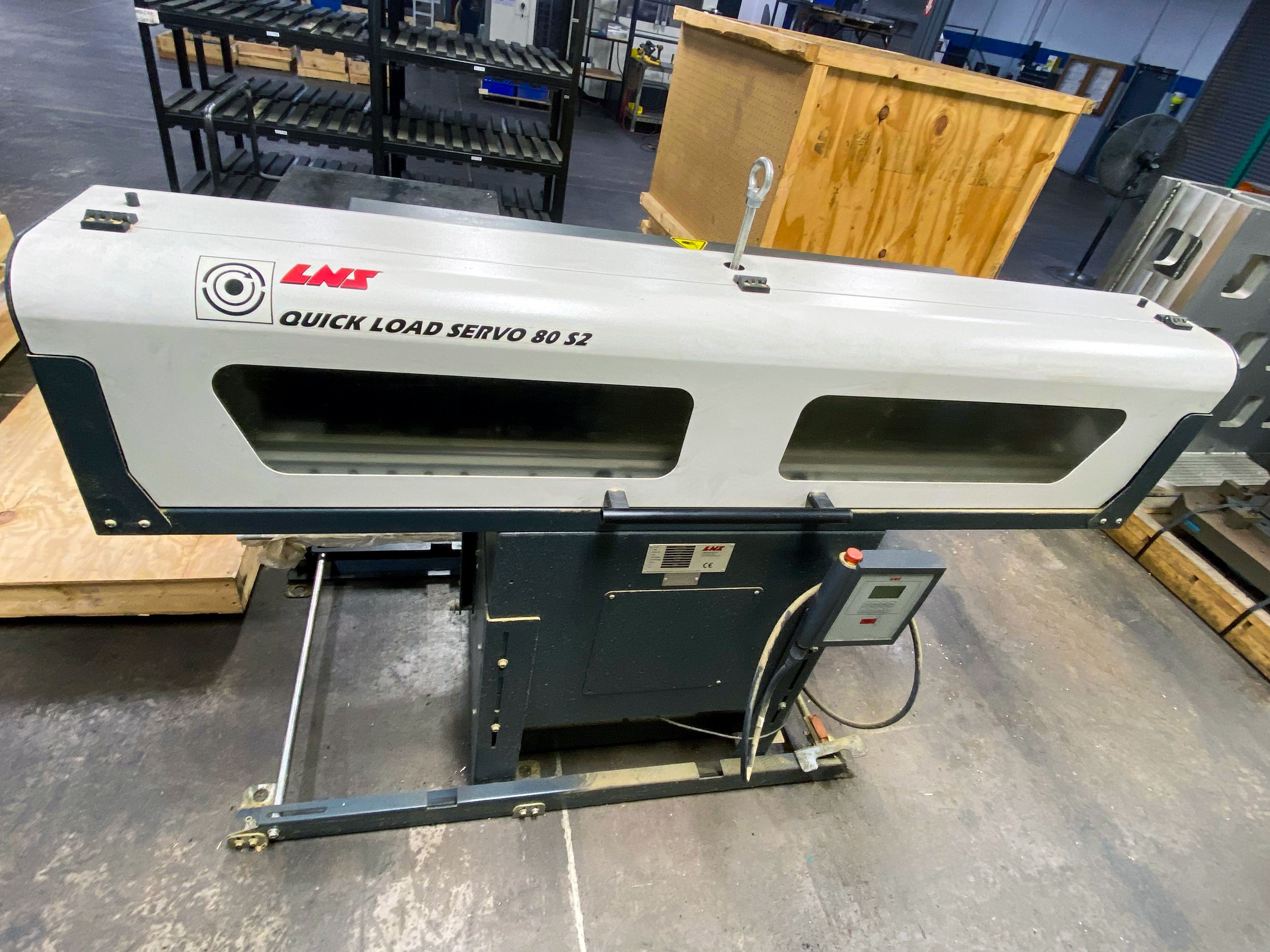

Pre-owned LNS QLS 80 S2 2017 Handling. This Handling has average cutting time and is equipped with a CNC control. This CNC Machine is currently located in USA. This LNS Handling is available for a limited time. Get a quote to...Read More
Seller Needs:
Payment:
Specs:
Capacity 3.125"
Bar Length 5'
Length of Spindle Type? Yes
Synch for Sliding Headstock? No
General Specifications per Brochure:
Automatic Magazine Loader for short bars - Length of Spindle Feed Cap
For fixed or Bushingless Traveling Headstock Lathes
Ideal solution for 1-5/8", 2", 2-1/2", 3" bar capacity turning centers.
One model fits all!
Bar Diameter Capacity: 1/4" - 3-1/8"
Maximum Bar Length Capacity: 63" - not to exceed overall length of spindle
Minimum Bar Length Capacity: 14"
Control Voltage: Electrical control cabinet, including auto-transformer for
200 to 460 volts with 24 Vdc power supply
Changeover Time: 15 seconds changeover - enter bar diameter, part length,
shape and select set up mode - no mechanical changes required, 1 minutes
complete changeover
Approx Dims: 80" x 66" x 50"
Shipping Weight: 1,150 lbs.
PRICES SUBJECT TO CHANGE WITHOUT NOTICE
New Unit (includes): .........................................$21,390.00
1/4" through 3-1/8" diameter x 14" through 63" length bar capacity
3 Pushers with Bushings
1/4" through 1/2" diameter bar stock (6mm pusher)
9/16" through 1-1/4" diameter bar stock (12mm pusher)
1-5/16" through 3-1/8" diameter bar stock (20mm pusher)
X or Z axis retract
Custom Electrical Cable Package with Plugs
Weight: 6,505,320,000
Bar Length 5'
Length of Spindle Type? Yes
Synch for Sliding Headstock? No
General Specifications per Brochure:
Automatic Magazine Loader for short bars - Length of Spindle Feed Cap
For fixed or Bushingless Traveling Headstock Lathes
Ideal solution for 1-5/8", 2", 2-1/2", 3" bar capacity turning centers.
One model fits all!
Bar Diameter Capacity: 1/4" - 3-1/8"
Maximum Bar Length Capacity: 63" - not to exceed overall length of spindle
Minimum Bar Length Capacity: 14"
Control Voltage: Electrical control cabinet, including auto-transformer for
200 to 460 volts with 24 Vdc power supply
Changeover Time: 15 seconds changeover - enter bar diameter, part length,
shape and select set up mode - no mechanical changes required, 1 minutes
complete changeover
Approx Dims: 80" x 66" x 50"
Shipping Weight: 1,150 lbs.
PRICES SUBJECT TO CHANGE WITHOUT NOTICE
New Unit (includes): .........................................$21,390.00
1/4" through 3-1/8" diameter x 14" through 63" length bar capacity
3 Pushers with Bushings
1/4" through 1/2" diameter bar stock (6mm pusher)
9/16" through 1-1/4" diameter bar stock (12mm pusher)
1-5/16" through 3-1/8" diameter bar stock (20mm pusher)
X or Z axis retract
Custom Electrical Cable Package with Plugs
Weight: 6,505,320,000
Options:
LNS
Seller:
WadeT884
Location:
USA
