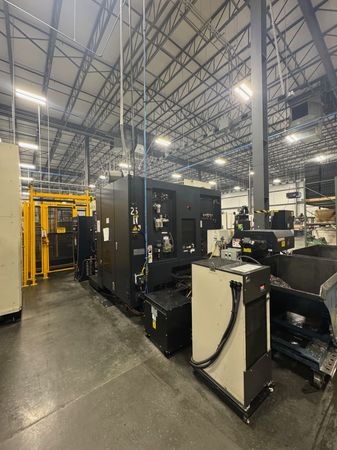

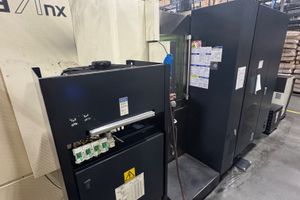

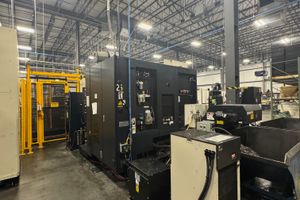

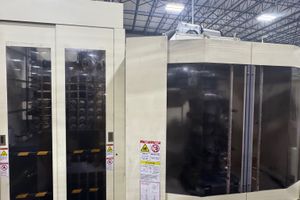

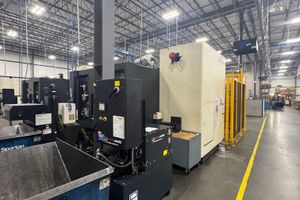

2021 MAKINO A71NX #14175

X Axis Travel: 31.5"
Y Axis Travel: 29.5"
Z Axis Travel: 32.7"
Spindle Speed: 10,000 RPM
Spindle Taper: HSK100
Spindle Motor: 50 HP
Rapid Rate Y Axis: 1,968 IPM
Rapid Rate X Axis: 1,968 IPM
Rapid Rate Z Axis: 1,968 IPM
Tool Changer: 136 ATC
Max Pallet Load: 2200 LBS
B-Axis: 360° DD NCRT
Maximum Workpiece: 35.4" x 39.4"
Tool to Tool: 1.7 sec (20kg)
Chip to Chip: 3.6 sec (20kg)
Maximum Tool Diameter: 11.8"
Maximum Tool Weight: 44.1 LBS (66 LBS with limitations)

Build Date: 08/2021

Chip Conveyor
Probe
Coolant Thru Spindle
360,000 Full 4th
10,000 RPM Spindle
Spindle Nose Cleaning Air
Rigid Tap
Positioning Block MST
HSK-A100 Spindle Interface
Rotary Table (DD motor)
Pallet Seat Confirm Function
Payload 1000Kg
Auto Grease Supply Device

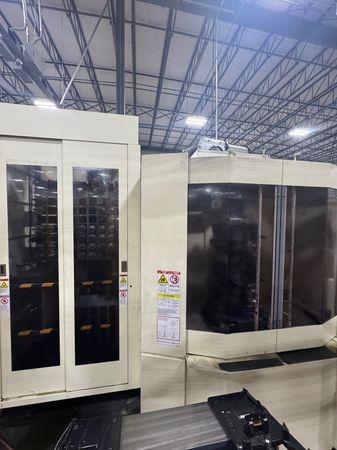

136 Tool ATC
HSK Pot for 136 Tool ATC
Tool Magazine Guard
Pallet Changer

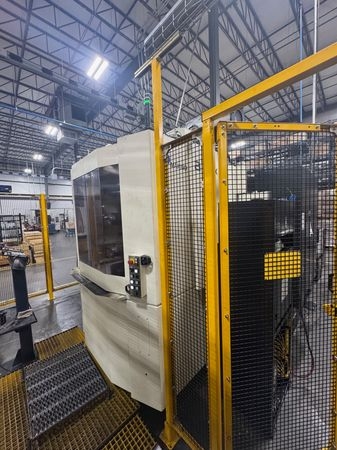

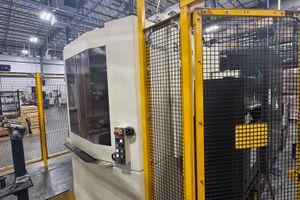

Pallet Changer Safety Guard
Random Pallet Selection
APC Door Lock
CPHUpper Hydraulic (12+12 port)
500mm Tapped Hole Pallets
Eight (8) Nozzle Coolant
Shower Coolant
Through Spindle Coolant (1.5/2.2MPa)
Base Coolant
Terrace Washing Coolant
Water Soluble Coolant
Operator Door Lock
Air Dryer
Vision B.T.S.
I/O Interface for Measurement
Automatic Fire Extinguish Int
Signal Light 3-Layer
PMPG w/ Enable Button
PD16-0323-Option C Only
Helical Interpolation
Linear Interpolation Position
User Memory 2GB+1GB
PD17-0235 CNC Mem Incr 512kb
Fast Ethernet Interface
External Setting Spindle Orient
Tool Offset 400 Pairs
Tool Offset Memory C
Workpiece Coordinate System
Optional Block Skip: total 9
Rigid Tapping Retract Function
Program Quick Restart Function
Custom Macro Variables 1100
Macro Variable File Output
High Speed Skip
Adaptive Control Function
GI Control
Energy Saving Function
MRDF
