MAKINO A71NX AI Chat
Loading ...

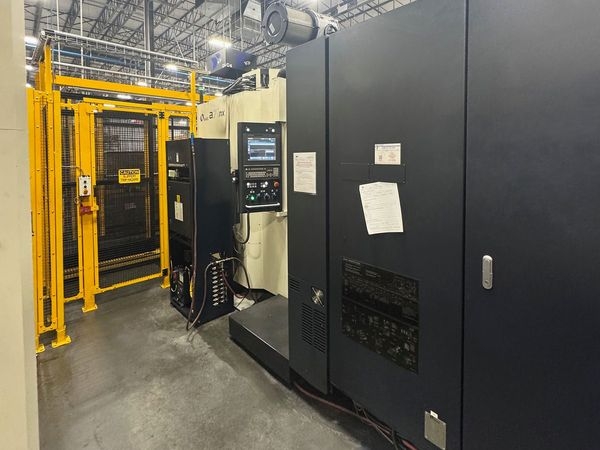

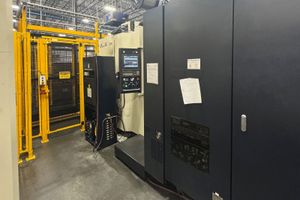

Machine Overview

Specs:
X Axis Travel: 31.5"
Y Axis Travel: 29.5"
Z Axis Travel: 32.7"
Spindle Speed: 10,000 RPM
Spindle Taper: HSK100
Spindle Motor: 50 HP
Rapid Rate Y Axis: 1,968 IPM
Rapid Rate X Axis: 1,968 IPM
Rapid Rate Z Axis: 1,968 IPM
Tool Changer: 136 ATC
Max Pallet Load: 2200 LBS
B-Axis: 360° DD NCRT
Maximum Workpiece: 35.4" x 39.4"
Tool to Tool: 1.7 sec (20kg)
Chip to Chip: 3.6 sec (20kg)
Maximum Tool Diameter: 11.8"
Maximum Tool Weight: 44.1 LBS (66 LBS with limitations)

Build Date: 08/2021
Options:
Chip Conveyor
Probe
Coolant Thru Spindle
360,000 Full 4th
10,000 RPM Spindle
Spindle Nose Cleaning Air
Rigid Tap
Positioning Block MST
HSK-A100 Spindle Interface
Rotary Table (DD motor)
Pallet Seat Confirm Function
Payload 1000Kg
Auto Grease Supply Device
136 Tool ATC
HSK Pot for 136 Tool ATC
Tool Magazine Guard
Pallet Changer
Pallet Changer Safety Guard
Random Pallet Selection
APC Door Lock
CPHUpper Hydraulic (12+12 port)
500mm Tapped Hole Pallets
Eight (8) Nozzle Coolant
Shower Coolant
Through Spindle Coolant (1.5/2.2MPa)
Base Coolant
Terrace Washing Coolant
Water Soluble Coolant
Operator Door Lock
Air Dryer
Vision B.T.S.
I/O Interface for Measurement
Automatic Fire Extinguish Int
Signal Light 3-Layer
PMPG w/ Enable Button
PD16-0323-Option C Only
Helical Interpolation
Linear Interpolation Position
User Memory 2GB+1GB
PD17-0235 CNC Mem Incr 512kb
Fast Ethernet Interface
External Setting Spindle Orient
Tool Offset 400 Pairs
Tool Offset Memory C
Workpiece Coordinate System
Optional Block Skip: total 9
Rigid Tapping Retract Function
Program Quick Restart Function
Custom Macro Variables 1100
Macro Variable File Output
High Speed Skip
Adaptive Control Function
GI Control
Energy Saving Function
MRDF
Description:

```html

This 2021 MAKINO A71NX Horizontal Machining Center comes equipped with a variety of options and upgrades suited for high-performance projects. The machine includes a Chip Conveyor to simplify cleanup, along with a Probe to ensure accurate measurements and precision. The Coolant Thru Spindle feature ensures temperature control during operation, which is supported further by the Eight Nozzle Coolant, Shower Coolant, and Base Coolant systems.

Additional features like the 10,000 RPM Spindle and Rigid Tap offer robust functionality, while the Spindle Nose Cleaning Air keeps the machine ready for continuous work. The machine also includes a Rotary Table powered by a DD motor, which enhances versatility during intricate operations. Supporting a Payload of up to 1000Kg, this center is ready for heavy-duty tasks.

The 136 Tool Automatic Tool Changer (ATC) with HSK Pot, complemented by a Tool Magazine Guard, stands ready to handle diverse tooling requirements. Also included are a Pallet Changer and a Random Pallet Selection feature. For added security, an APC Door Lock and Operator Door Lock are standard inclusions.

Advanced options such as Helical Interpolation, Linear Interpolation Position, and a User Memory of 2GB+1GB ensure a broad range of capabilities, from basic operations to more complex tasks. Connectivity is enhanced with a Fast Ethernet Interface.

Safety and operational features include an Automatic Fire Extinguish Int, Signal Light 3-Layer, Energy Saving Function, and Adaptive Control Function. For measurement and monitoring needs, the machine is outfitted with I/O Interface for Measurement and the Vision B.T.S.

Software configurations such as Tool Offset Memory C, Workpiece Coordinate System, and Custom Macro Variables 1100 provide extensive programming flexibility. The machine supports quick recovery actions with Program Quick Restart Function and adds operational convenience with Rapid Spindle Orientation.

Enhanced with tools for updated processes, including Rigid Tapping Retract Function and Position Block MST, the potential for extensive use is evident. For those seeking comprehensive intervention, Macro Variable File Output and High Speed Skip are additional features.

Overall, if you require a horizontal machining center that merges cutting-edge specifications with practical solutions, consider exploring this MAKINO A71NX. It's available for the right buyer looking to advance their machining capabilities.

```
