How to Manually Adjust G-Code Programs: Tips and Real Examples
G-code is the language of CNC (Computer Numerical Control) machines, directing them on how to move, what tools to use, and how to execute specific tasks. As machinists gain experience, they may find it necessary to manually adjust G-code programs to optimize their machining processes. This article explores practical tips for adjusting G-code, complete with real-world examples to enhance understanding.

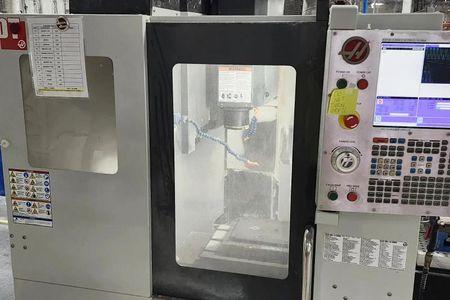

Understanding G-Code Basics
Before diving into adjustments, it’s essential to grasp the fundamentals of G-code:
- G-Codes: These control the movement of the CNC machine. Common commands include:
- G0: Rapid positioning
- G1: Linear interpolation (controlled feed)
- G2/G3: Circular interpolation (clockwise and counterclockwise)
- M-Codes: These control miscellaneous functions such as starting or stopping the spindle or changing tools.
Example:
G0 Z5.0 ; Move the tool to a height of 5.0 units quickly
G1 X10.0 Y10.0 F150.0 ; Move to X10.0 and Y10.0 at a feed rate of 150 units/min1. Use a G-Code Viewer or Simulator
Before making adjustments, visualize your tool path using a G-code viewer or simulator. Software like Fusion 360 or G-code Simulator can help you preview the tool's movements, identify issues, and test changes.
Example:
If your initial G-code does not account for the size of a fixture, you can use a simulator to visualize the tool path and see potential collisions.
2. Identify the Parameters to Adjust
Adjusting Coordinates
Modifying X, Y, and Z coordinates helps in repositioning the tool path as needed.
Example:
Suppose the original G-code is:
G1 X20.0 Y30.0 Z-5.0 ; Original positionTo move the tool to a new position, you can adjust it to:
G1 X25.0 Y35.0 Z-5.0 ; Adjusted position3. Change Feed Rates and Spindle Speeds
Feed rates and spindle speeds can dramatically affect machining outcomes.
Example:
If the original code uses a feed rate that is too fast for a specific material:
G1 F300.0 ; Original feed rateYou may want to slow it down for better control:
G1 F150.0 ; Adjusted feed rate for tougher materials4. Implement Tool Offset and Compensation
Using tool offsets is critical when switching between different tools or correcting for tool length differences.
Example:
If you are switching from a long drill bit to a shorter one:
T1 M6 ; Tool change to Tool 1
G43 H1 ; Apply tool height offset for Tool 1If your offset was incorrect, you can adjust it:
G43 H2 ; Apply new tool height offset for Tool 25. Safety Measures: Run a Dry Run
Always perform a dry run to ensure that the adjusted G-code operates as intended without material. This allows you to observe the tool path and confirm there are no collisions.
Example:
If you suspect that your changes have introduced new movements, running a dry run can help you see if the tool goes outside the designated area or crashes into fixtures.
6. Save and Backup Original Code
Before making adjustments, always save a copy of the original G-code program. This ensures you have a fallback if something goes wrong.
Example:
If your original program was named part1.nc, save a copy as part1_backup.nc before making any modifications.
7. Document Changes for Future Reference
Keeping a log of changes helps in refining your G-code adjustment skills over time. Document the reason for each adjustment and its outcome.
Example:
Create a document that notes:
- Date: 2024-10-21
- Original Code:
G1 F300.0 - Adjustment: Changed feed rate to
G1 F150.0 - Outcome: Improved surface finish on the part.
Conclusion
Manually adjusting G-code programs is a valuable skill for CNC machinists, allowing them to optimize their machining processes for improved efficiency and quality. By following the practical tips outlined in this article and learning from real-world examples, machinists can enhance their G-code proficiency, ensuring successful outcomes in their projects. By embracing these techniques, you can minimize errors and improve the overall performance of your CNC machining operations, leading to higher productivity and better-quality parts.
