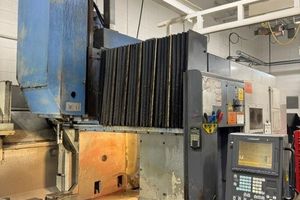

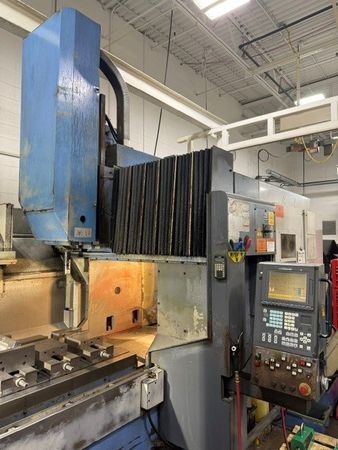

1999 MAZAK FJV35-60

Specification Value
X-axis travel 59 in (1500 mm)
Y-axis travel 31.5 in (800 mm)
Z-axis travel 23 in (585–660 mm depending on version)
Table size 68.5 × 29.5 in (1740 × 750 mm)
Maximum table load 5,500 lb (2,500 kg)
Distance between columns 34.65 in (880 mm)
Spindle taper CAT 50 / BT50
Spindle speed 10,000 rpm standard
Spindle motor 40 hp (30 kW class)
Tool magazine 60 tools (varies by configuration)
Tool-to-tool time 2.1 sec
Chip-to-chip time 5.5 sec
Rapid traverse 1,570 ipm X/Y, 1,179 ipm Z
Machine weight Approx. 28,800–30,000 lb

Machine Highlights
Double-column bridge construction for rigidity and thermal stability.
CAT 50 spindle for aggressive metal removal.
Suitable for mold work, large plates, aerospace components, and heavy steel machining.
Common controls include Mazatrol Fusion 640M, Mazatrol M-Plus, and newer SmoothG controls depending on year.
Typical Work Envelope

The machine can comfortably handle parts roughly:

Up to 68.5 in long
Up to 33–34 in wide
Up to 25 in tall
Up to 5,500 lb workpiece weight
