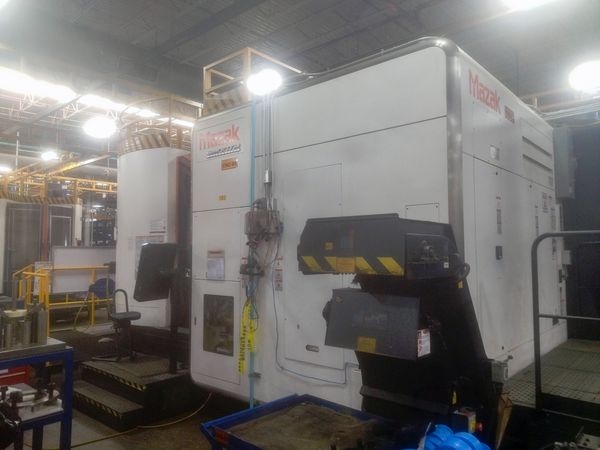

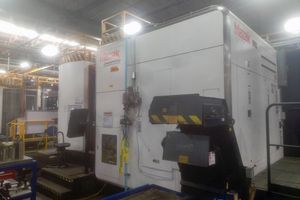

2015 MAZAK INTEGREX I630V-6

ID:13496
Brand:MAZAK
Model: INTEGREX I630V-6
Year:2015
Category:CNC Lathe
Location:Texas

Located In Texas

SHIPPING COST :

Hello!

Machine Overview

Specs:

Chuck Size: 32"
Spindle Speed: 550 RPM
Spindle Motor: 50 HP
X Axis Travel: 56.1"
Y Axis Travel: 41"
Z Axis Travel: 41.34"
Rapid Rate Z Axis: 2,047 IPM
Turret Tools: 43 Station
Rapid Rate X Axis: 2,047 IPM
Max Turning Dia: 41.34"
Max Turning Length: 39.37"
Pallet Size: 31.5" DIA (2)
B Axis Travel: 150° (-30°/+120°)
C Axis Travel: 360 Degrees
C Axis Traverse: 50 RPM
C Axis Increment: 0.0001 Degrees
Live Milling Speed: 10,000 RPM
Live Milling Spindle Motor: 50/40 HP
B Axis Rapid Traverse Rate: 30 RPM
B Axis Increment: 0.001 Degrees
Max Workpiece Size: 41" x 39"
Table Load Capacity: 3,858
Tool Shank: CAT50
Max Tool Diameter: 5"
Max Tool Length: 20"
Max Tool Weight: 66 LBS
Dimensions: 219" x 304" x 148"
Weight: 71,980 LBS

Options:

Chip Conveyor
Live Tooling
Y Axis
5 Axis
Mazak SMOOTHX Control

Description:

Pre-owned MAZAK INTEGREX I630V-6 2015 CNC Lathe. This CNC Lathe has average cutting time and is equipped with a CNC control. This CNC Machine is currently located in Texas. This MAZAK CNC Lathe is available for a limited time. Get a quote today on this INTEGREX I630V-6 before it's gone.
