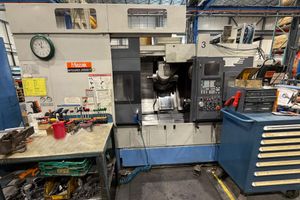

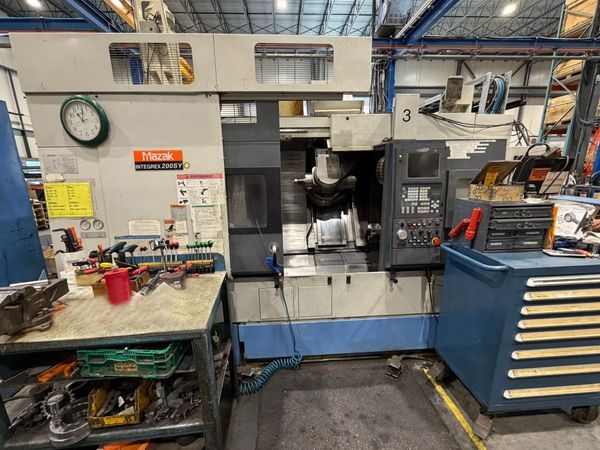

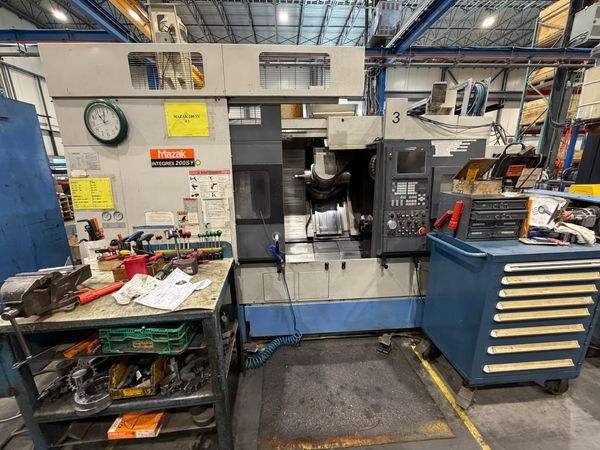

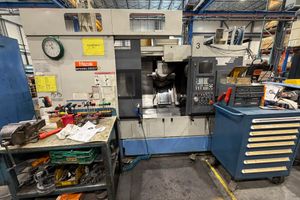

2000 MAZAK INTEGREX 200SY

Bar Capacity: 2"
Chuck Size: 8"
Spindle Speed: 6,000 RPM
Spindle Motor: 25 HP
X Axis Travel: 20.87"
Z Axis Travel: 41.92"
Rapid Rate Z Axis: IPM
Turret Tools: 40 Station
Rapid Rate X Axis: IPM
Max Turning Length: 40"
Spindle / Sub-Spindle Speeds: 5,000 RPM
Main Spindle Bore: 2.4”
Sub-Spindle Bore: 1.73”
Power Chuck 1: UC2-215
Main Chuck OD: 8-1/2”
Power Chuck 2: UC2-180
Chuck OD: 7”
Tooling Type: Kennametal KM63
Tooling Qty: Approx. 66 holders, including ATC
Max Tool Length: 9.84"
Max Tool Diameter: 3.54" / 4.72"
Max Tool Weight: 15.4 LBS
Electrics: 230 Volt / 3 Phase / 50-60 Cycle
Sub-Spindle Power: 10 HP
Milling Spindle Power: 15 HP
Weight: 13,200 LBS

Mazatro640MT
Chip Conveyor
Tool Presetter
Tailstock
Live Tooling
Sub Spindle
Y Axis
