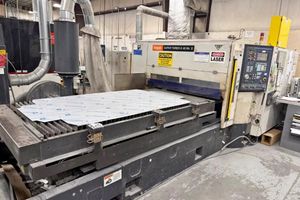

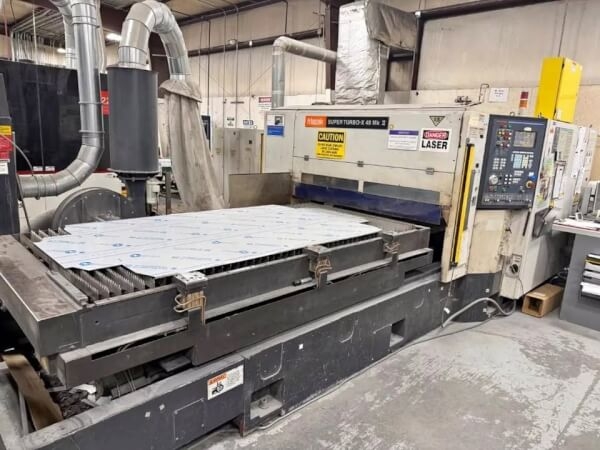

2004 MAZAK STX48 MARK II

This 2004 MAZAK STX48 MARK II is a robust CNC laser cutter available for purchase. Engineered with the Super Turbo X-48 CNC Laser & LaserSharp LPM100, it leverages the Mazatrol L32B control system for streamlined operations. This system is designed to meet a variety of cutting needs with the CO2 Laser, YB-L150A, providing a rated output of 1500W.

The machine's dimensions and capacity offer wide ranging applications, with an X Axis Stroke of 2685 mm (105.7"), a Y Axis Stroke of 1270 mm (50.0"), and a Z Axis Stroke of 100 mm (3.9"). These specifications allow for cutting larger materials with a max workpiece size of 2500 x 1250 x 12 mm (98.4" x 49.2" x 0.47").

Handling a max load capacity of 2.9 kN / 661 lbf, the machine demonstrates significant performance capability, all the while operating on a dependable 3-Phase, 230-460V setup. It holds a weight of 122.5 kN / 27,600 lbf, indicating its structural integrity and durable build.

This machine is suited to a range of workshop environments where precision and durability are needed, making it a valuable addition to your equipment lineup. Contact for further details or viewing appointments.
