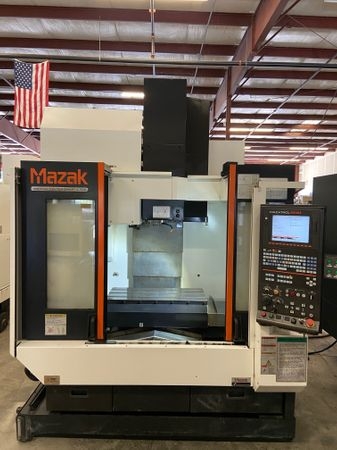

Used MAZAK VCS430A Vertical Machining Center

Pre-owned MAZAK VCS430A 2011 Vertical Machining Center. This Vertical Machining Center has average cutting time and is equipped with a Mazatrol control. This CNC Machine is currently located in Wisconsin. This MAZAK Vertical Machining Center is available for a limited time.Get a quote today on this VCS430A before it's gone.

X Axis Travel: 22.05"
Y Axis Travel: 16.93"
Z Axis Travel: 20.08"
Rapid Rate X Axis: 1,654 IPM
Rapid Rate Y Axis: 1,654 IPM
Rapid Rate Z Axis: 1,654 IPM
Table Size: 35.43" x 16.93"
Max Table Load: 1,100 LBS
Spindle Motor: 25 HP
Spindle Speed: 12,000 RPM
Spindle Taper: 40 CT
Tool Changer: 30 ATC
Dimensions: 108" x 84" x 101"
Weight: 10,600 LBS
Programmable Coolant
High Smoothing Control, High Speed, Shape Comp. EIA Conversion, Inch/MM Convert-Axis Shape Comp.
600 Slope Const., Scale Feedback, Cylinder, IC Card Running, Protool B, shaping 2nd Aux. Functions
Ethernet Running, Lead Error Comp., Tap Retraction
Steve (Machine Shop in USA)
