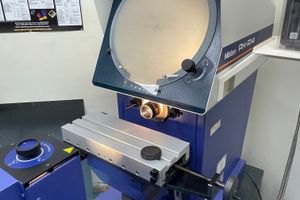

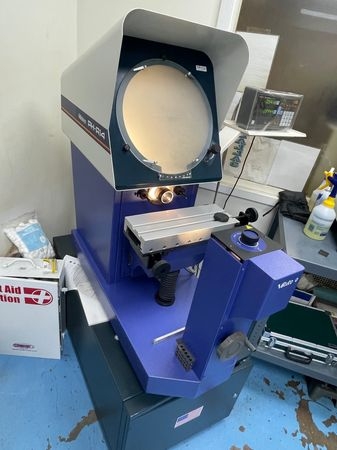

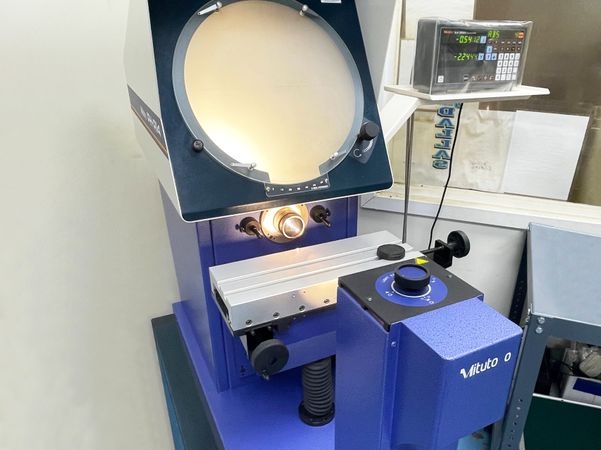

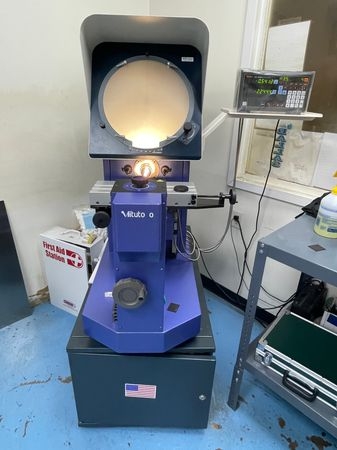

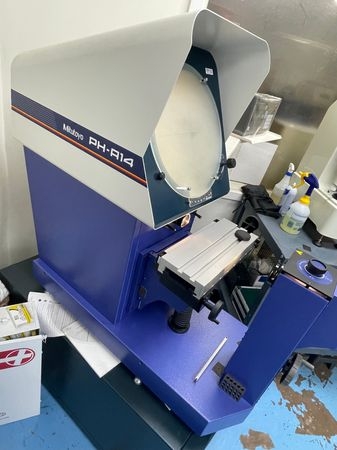

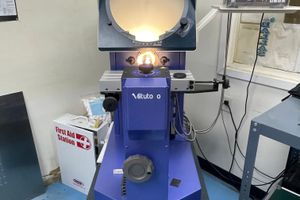

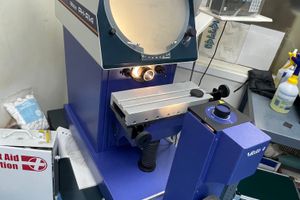

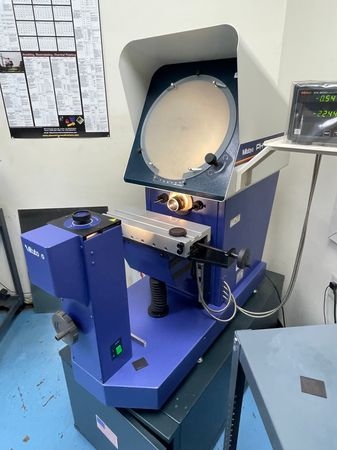

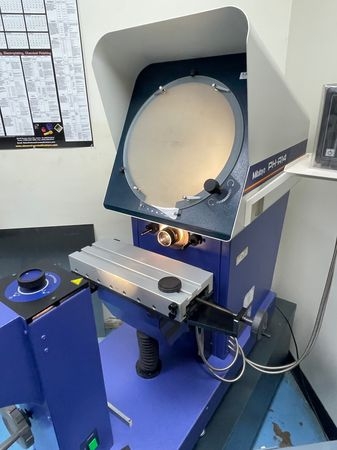

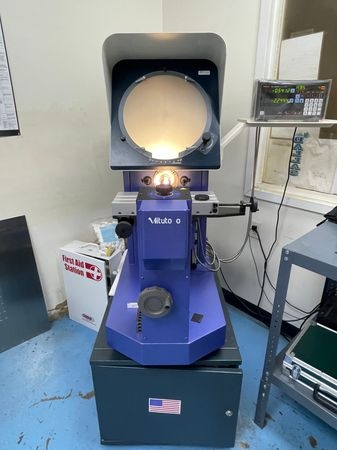

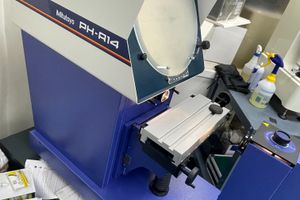

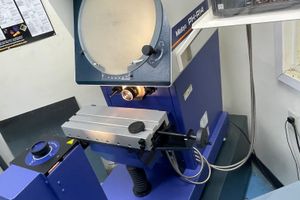

Reserve Met: 2021 MITUTOYO PH A14 #13627

Projected image: Inverted image

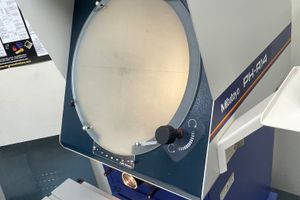

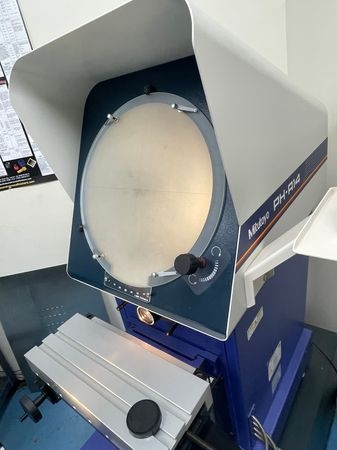

Protractor screen 14” (356mm)
Fine ground glass with cross - hair lines
Vernier reading, Resolution: 2’

Illumination
24V, 150W (512305) halogen lamp,
Telecentric illumination
24V, 150W (512305) halogen lamp,
Twin fiber-optic illuminator

Magnifications 10X (Standard), 20X, 50X, 100X (Option)

Magnifications Accuracy
0.1% or less
0.15% or less

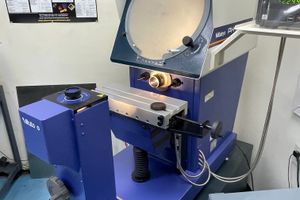

Workstage
(X-axis)
8” (203.2mm)
16” x 6” (407 x 153mm)
Linear Scale
.00005” (0.001mm)*1

(Y-axis)
4” (101.6mm)
Linear Scale
.00005” (0.001mm)*1

(Z-axis)
2” (50.8mm)

Max Load 100lbs (45.37Kg)

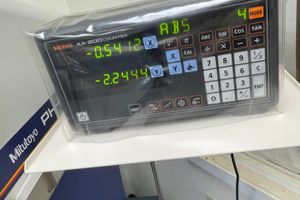

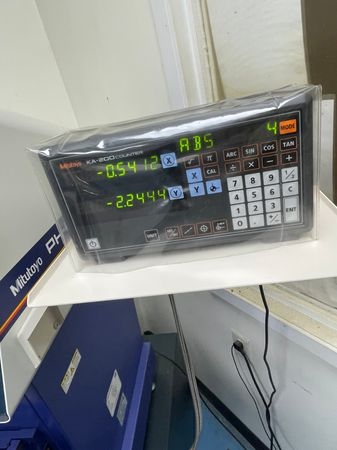

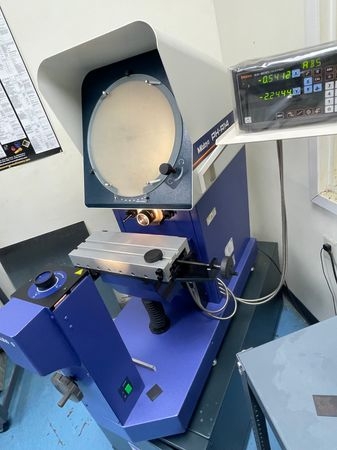

XY counter Option
Power supply 120VAC, 50/60Hz
Dimensions: 48.8" x 24.1" x 45.6"
