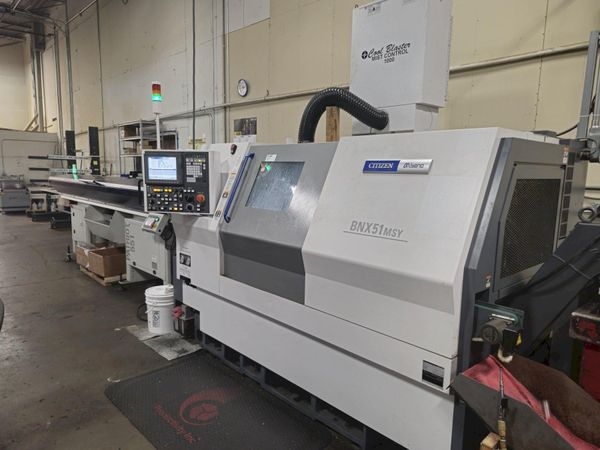

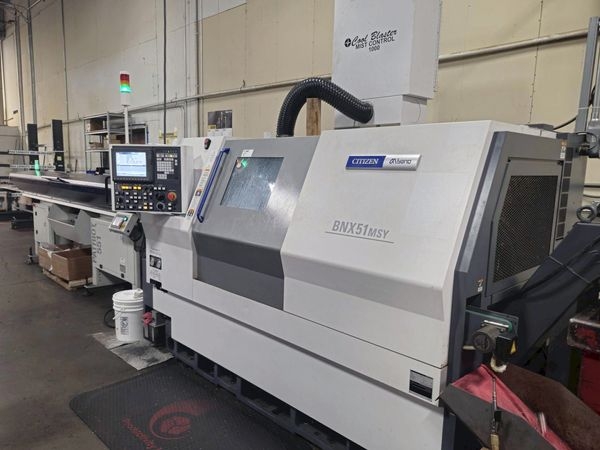

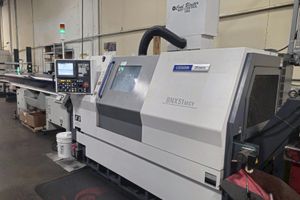

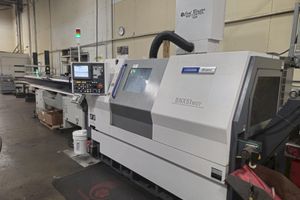

Max. Machining Length 100 mm
Bar Capacity (SP1 / SP2) 51 mm / 42 mm Dia.
Power Chuck Size (SP1 / SP2) 6" Thru-hole / 5" Thru-hole
Draw Tube I.D. (SP1 / SP2) 52 mm / 43 mm Dia.
Collet Chuck Type (SP1 / SP2) H-S22 / H-S16 (DIN171E)
Turret Type (Turret 1 / Turret 2) 12 Station / 8 Station
Revolving Tools (T1 / T2) Max. 12 (Single Clutch) / Max. 4 (Simultaneous Drive)
Tool Spindle Speed (T1 / T2) 6,000 rpm / 3,000 rpm
Drilling Capacity (T1 / T2) Max ? 13 mm / Max ? 10 mm
Tapping Capacity (T1 / T2) Max M12 / Max M6
Rapid Feed Rate (X1, Z1, X2, Z2) 20 m/min
Rapid Feed Rate (Y1 Axis) 12 m/min
Turret Stroke (X1 / Z1 / Y1) 165 mm / 246 mm / 80 (±40) mm
Sub-Spindle Stroke (X2 / Z2) 85 mm / 590 mm
Spindle Motor SP1 / SP2 15/11 kW / 7.5/5.5 kW
Revolving Tool Motor (T1 / T2) 2.2 kW / 0.75 kW
Hydraulic / Coolant Pump Motor 2.2 kW / 0.25 kW + 0.18 kW
Input Power / Fuse 33 KVA / 100 A
Coolant Tank Capacity 300 L
CNC Control: yes
Type of CNC Control: Mitsubishi M70V
Number of Axes: 7
Control Axis Groups: 2
Number of Spindles: 2
Chuck Size: 6" on main spindle
Spindle 1 Chuck Size: 6"
Spindle 2 Chuck Size: 5"
Max. machining length: 150mm/5.9"
Diameter of standard cutting - Spindle 1: 51mm Dia.
Diameter of standard cutting - Spindle 2: 51mm Dia.
Spindle Speed Range: 2
Spindle speed range - Spindle 1: 5000 RPM
Spindle speed range - Spindle 2: 5000 RPM
Inner diameter Draw tube - Spindle 1: 52mm Dia.
Inner diameter of draw tube - Spindle 2: 43mm Dia.
No. Positions on Turret: 12 Station Turret
Revolving Number of Tools on Turret: Max. 12
Revolving Tool Speed Range: 6000 RPM
Slide Stroke: See Below
Turret Slide Stroke X1 Axis: 165mm
Turret Slide Stroke Z1 Axis: 300mm
Turret Slide Stroke Y1 Axis: 80 (+/-40)mm
Spindle Slide Stroke - X2 Axis: 86mm
Spindle Slide Stroke - Z2 Axis: 553mm
Spindle HP: 20HP
Sub-Spindle HP: 10HP
Revolving Tool Drive: 5.3HP
Voltage / Power requirement: AC200/220 +/-10% 50/60 Hz
Dimensions: 153.8"L x 61.45"W x 43.30" Ht (with chip conveyor)
Machine Weight: 11240 Lbs.
Control: Mitsubishi M70V
Display Color 10.4" LCD
Standard Accessories
SP1/SP2 Chucking Device H-S22
Splash guard interlock
Spindle Air Blow
Spindle Brake
SP2 Work Ejector & Inner High Pressure Coolant
Part Conveyor
Chip Conveyor
3-Color Signal Tower
Total & Preset Counter (Custom Menu)
Cut-Off Confirmation (Electric Type)
Barfeeder Interface
Coolant Level Switch
Standard Tooling Package
Optional Accessories
1000 psi High Pressure Coolant - Chip Blaster
Mist Collector - Cool Blaster
Parts Carrier
Cut-Off Confirmation (Cylinder Type)
3-Jaws Chuck Systems
Standard NC Functions
Spindle C axis control (main-back)
Spindle synchronization function (main - back)
Program storage capacity: 160m
User macros
Canned cycle for drilling
Constant surface speed control
Polygon turning
Spindle synchronized tapping function (main-back)
Tool spindle synchronized tapping function
Sub-inch control
Milling interpolation
Helical interpolation
Multiple repetitive cycle for turning I/II
B code I/F
Tool offset: 80 pairs
Nose radius compensation
High speed program check
Optional block skip (1 set)
Superimposition of control axes
Torque skip function
Corner chamfering/Corner rounding
Arbitrary axis exchange function
Continuous thread cutting
Network I/O function
Other Features:
Chip Conveyor
Edge Technologies Patriot 551 Magazine Barfeed
*All tooling including live toolholders go with the machine.
