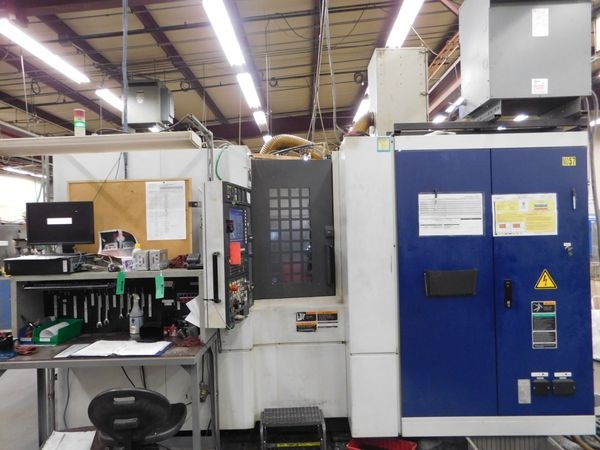

Pre-owned MORI SEIKI NH4000DCG 2006 Horizontal Machining Center. This Horizontal Machining Center has average cutting time and is equipped with a MSX-501III control. This CNC Machine is currently located in USA. This MORI SE...Read More
Notify Me:
Specs:
X Axis Travel: 22.5"
Y Axis Travel: 22.5"
Z Axis Travel: 24.8"
Rapid Rate X Axis: 1,968 IPM
Rapid Rate Y Axis: 1,968 IPM
Rapid Rate Z Axis: 1,968 IPM
Pallet Size: 15.75" x 15.75""
Max Pallet Load: 880 LBS
Spindle Speed: 14,000 RPM
Spindle Motor: 25 HP
Spindle Taper: 40 CT
Tool Changer: 40 ATC
Spindle to Pallet: 3.1" – 28.7"
Max Tool Diameter: 2.75" - 5.51"
Max Tool Length: 15.75"
Max Tool Weight: 17.78 lbs
Pallet Change Method: Rotation
Pallet Change Time: 6 sec
Dimensions: 91" x 148" x 103"
Weight: 22,000 LBS
Y Axis Travel: 22.5"
Z Axis Travel: 24.8"
Rapid Rate X Axis: 1,968 IPM
Rapid Rate Y Axis: 1,968 IPM
Rapid Rate Z Axis: 1,968 IPM
Pallet Size: 15.75" x 15.75""
Max Pallet Load: 880 LBS
Spindle Speed: 14,000 RPM
Spindle Motor: 25 HP
Spindle Taper: 40 CT
Tool Changer: 40 ATC
Spindle to Pallet: 3.1" – 28.7"
Max Tool Diameter: 2.75" - 5.51"
Max Tool Length: 15.75"
Max Tool Weight: 17.78 lbs
Pallet Change Method: Rotation
Pallet Change Time: 6 sec
Dimensions: 91" x 148" x 103"
Weight: 22,000 LBS
Options:
MSX-501III
Chip Conveyor
Coolant Thru Spindle
360 Deg. Indexing Table
Chip Blaster Unit
Transformer
Mist Collector
Chip Conveyor
Coolant Thru Spindle
360 Deg. Indexing Table
Chip Blaster Unit
Transformer
Mist Collector
