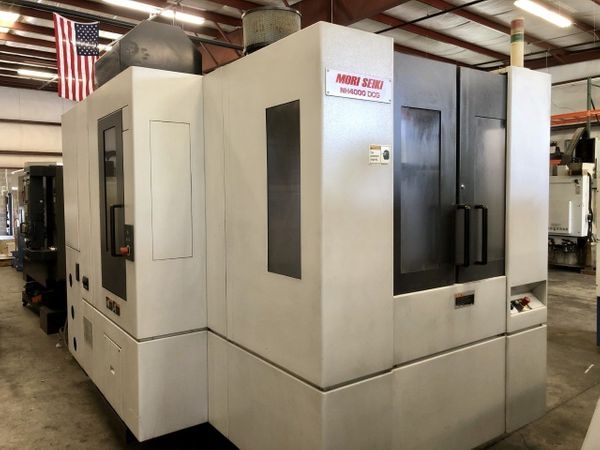

Used MORI SEIKI NH4000DCG Horizontal Machining Center
Pre-owned MORI SEIKI NH4000DCG 2007 Horizontal Machining Center. This Horizontal Machining Center has average cutting time and is equipped with a MSX-501III control. This CNC Machine is currently located in Florida. This MORI SEIKI Horizontal Machining Center is available for a limited time. Get a quote today on this NH4000DCG before it's gone.
Specs:
X Axis Travel: 22.5"
Y Axis Travel: 22.5"
Z Axis Travel: 24.8"
Rapid Rate X Axis: 1,968 IPM
Rapid Rate Y Axis: 1,968 IPM
Rapid Rate Z Axis: 1,968 IPM
Pallet Size: 15.75" x 15.75""
Max Pallet Load: 880 LBS
Spindle Speed: 14,000 RPM
Spindle Motor: 25 HP
Spindle Taper: 40 CT
Tool Changer: 60 ATC
Spindle to Pallet: 3.1" – 28.7"
Dimensions: 90" x 148" x 102"
Weight: 22,000 LBS
Y Axis Travel: 22.5"
Z Axis Travel: 24.8"
Rapid Rate X Axis: 1,968 IPM
Rapid Rate Y Axis: 1,968 IPM
Rapid Rate Z Axis: 1,968 IPM
Pallet Size: 15.75" x 15.75""
Max Pallet Load: 880 LBS
Spindle Speed: 14,000 RPM
Spindle Motor: 25 HP
Spindle Taper: 40 CT
Tool Changer: 60 ATC
Spindle to Pallet: 3.1" – 28.7"
Dimensions: 90" x 148" x 102"
Weight: 22,000 LBS
Options:
MSX-501III
Chip Conveyor
Coolant Thru Spindle
360 Deg. Indexing Table
Chip Blaster High Pressure Coolant Unit
Probe Ready (Damaged Tool Eye, Missing Spindle Probe)
Chip Conveyor
Coolant Thru Spindle
360 Deg. Indexing Table
Chip Blaster High Pressure Coolant Unit
Probe Ready (Damaged Tool Eye, Missing Spindle Probe)
Owner:
MikeL359
(Machine Shop in FL)
