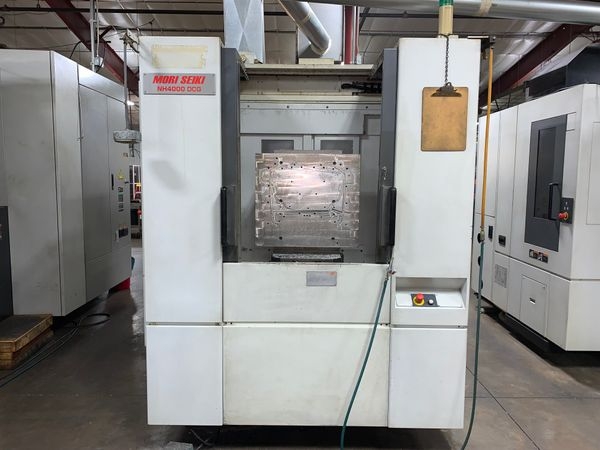

Used MORI SEIKI NH4000DCG Horizontal Machining Center
Pre-owned MORI SEIKI NH4000DCG 2007 Horizontal Machining Center. This Horizontal Machining Center has average cutting time and is equipped with a CNC control. This CNC Machine is currently located in USA. This MORI SEIKI Horizontal Machining Center is available for a limited time. Get a quote today on this NH4000DCG before it's gone.
Specs:
X Axis Travel: 22.5"
Y Axis Travel: 22.5"
Z Axis Travel: 24.8"
Rapid Rate X Axis: 1,968 IPM
Rapid Rate Y Axis: 1,968 IPM
Rapid Rate Z Axis: 1,968 IPM
Pallet Size: 15.75" x 15.75""
Max Pallet Load: 880 LBS
Spindle Speed: 14,000 RPM
Spindle Motor: 25 HP
Spindle Taper: 40 CT
Tool Changer: 40 ATC
Spindle to Pallet: 3.1" – 28.7"
Max Tool Diameter: 2.75" - 5.51"
Max Tool Length: 15.75"
Max Tool Weight: 17.78 lbs
Pallet Change Method: Rotation
Pallet Change Time: 6 sec
Dimensions: 91" x 148" x 103"
Weight: 22,000 LBS
Y Axis Travel: 22.5"
Z Axis Travel: 24.8"
Rapid Rate X Axis: 1,968 IPM
Rapid Rate Y Axis: 1,968 IPM
Rapid Rate Z Axis: 1,968 IPM
Pallet Size: 15.75" x 15.75""
Max Pallet Load: 880 LBS
Spindle Speed: 14,000 RPM
Spindle Motor: 25 HP
Spindle Taper: 40 CT
Tool Changer: 40 ATC
Spindle to Pallet: 3.1" – 28.7"
Max Tool Diameter: 2.75" - 5.51"
Max Tool Length: 15.75"
Max Tool Weight: 17.78 lbs
Pallet Change Method: Rotation
Pallet Change Time: 6 sec
Dimensions: 91" x 148" x 103"
Weight: 22,000 LBS
Options:
Fanuc MSX-701 III
Chip Conveyor
360 Deg. Indexing Table
Thru Tool Coolant Interface
Flood & Shower Coolant
135 Gallon Coolant Capacity
Scraper Type Chip Conveyor
1 Megabyte Program Memory with 2,560 Meters
Custom Macro B
High Speed Skip
2 Pallets
Seller Will Prep & Load Machine
Chip Conveyor
360 Deg. Indexing Table
Thru Tool Coolant Interface
Flood & Shower Coolant
135 Gallon Coolant Capacity
Scraper Type Chip Conveyor
1 Megabyte Program Memory with 2,560 Meters
Custom Macro B
High Speed Skip
2 Pallets
Seller Will Prep & Load Machine
Owner:
JeffW872
(Machine Shop in TX)
