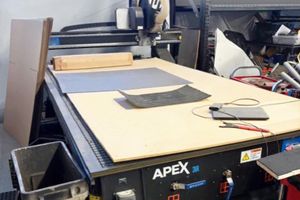

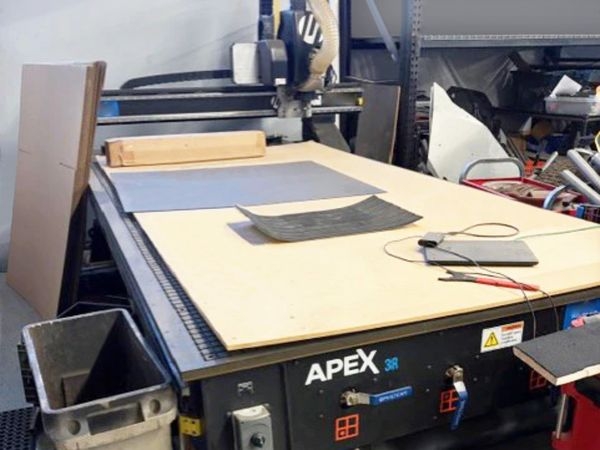

2020 MULTICAM APEX 3R

X Axis Travel: 5"
Y Axis Travel: 10"
Spindle Speed: 32,000RPM
Spindle Motor: 8.5HP
Number of Axis: 3
Spindle Manufacturer: Umbra
Tool Changer: HSK-32 Apex-3R
Homing Locator: Cross Hair Laser Pointer
Includes: Surface Probe and Auto Calibration Sensor, Apex3R High Pressure, 1in Phenolic Standard Grid, 4 Manual Zones, Auto Misting Lubricating System with Flexible Line Nozzles For NonFerrous Metals, Locator Pins, Front Right Corner Location Set Of 3, High Press
Work Area: 80 × 120 inch
Gantry Width: 200 wide, 8-inch clearance
Surface Probe and Auto-Calibration: Apex3R Surface Probe with Auto Calibration Sensor
Spindle: HSD 9 HP, 18,000 RPM, 208 V 3-Phase
Dust Collection Hood: 10 inch
Tool Holder: HSK63A, 3 Tool Holders (53 total locations)
Tool Holder Kit: HSK63A Starter Kit
Laser Pointer System: Camera and Laser Pointer for XY setting
Auto Mist Lubrication System: Programmable, flexible line nozzles
Automatic Quick Change Knife Assembly
4 Position Knife Tool Changer: Apex Knife
Oscillating Knife Head: HSD Brushless, 1/8 inch to 5 mm Cemented Blades
Router Spindle Quick Change Drag Knife: Max Ø 60 mm
1.5 × 3 M Hi End Machine Base
Tandem Table: 2 Zone Vacuum System
10 HP High Pressure Manual Ball Valve Vacuum Assembly
7.5 HP Regenerative Vacuum Blower (13 in Hg, 208 V)
3 HP High Pressure Material Blower (13 in Hg, 208 V)
Vision System: Camera and Vision
Electrical: 208 V 3-Phase
Table Size: 168" x 83"
Dimensions: 16" x 8.4" x 8"

Probe
Dust Collector
Vacuum System
Hold Down
