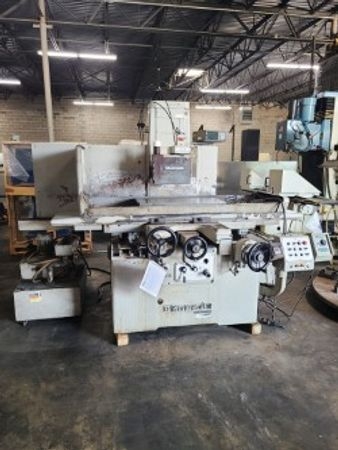

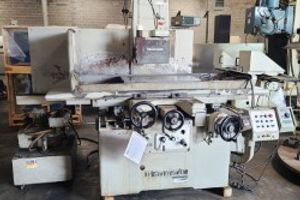

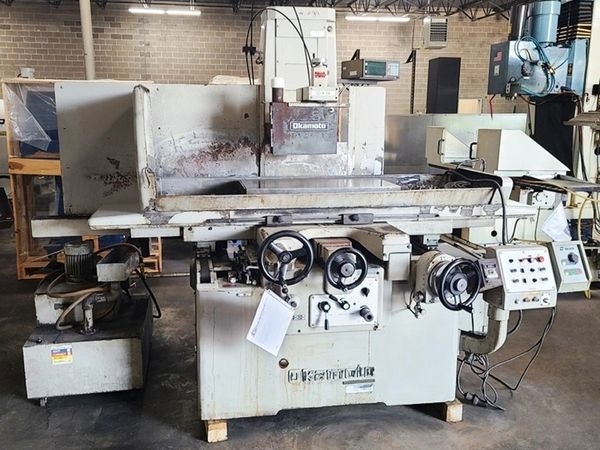

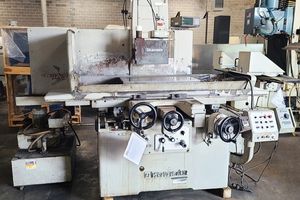

2005 OKAMOTO 1632N

Maximum Grinding: 16" Wide x 32" Long

Maximum Vertical Clearance:

14" Diameter Wheel (50 Hz): 20.6"

12" Diameter Wheel (60 Hz): 21.6"

Table Load Capacity: 1,550 Lbs.


Maximum Table Travel (Manual): 17.3" x 37.4"

Table Working Surface: 15.7" x 37.4"


Longitudinal Movement of Table

Hydraulic Feed: 10' to 83' per Minute


Cross Movement of Saddle

Hydraulic Intermittent Feed: 0.02" to 0.8"

Hydraulic Continuous Feed: 8" to 40" per Minute


Hand Feed per Revolution: 0.25"

Graduation of Handwheel: 0.001"


Vertical Movement of Wheelhead

Automatic Feed per Table Stroke: 0.0002" to 0.0015"

Automatic Feed per Saddle Reversal: 0.0002 to 0.0015"

Hand Feed per Revolution: 0.05"

Manual Incremental Feed: 0.0001" to 0.0015"

Graduation of Handwheel: 0.0001"

Rapid Feed (50/60 Hz): 16"/19" per Minute


Grinding Wheel Diameter (50/60 Hz): 14"/12"

Grinding Wheel Width: 1-1/2"

Grinding Wheel Bore: 5"
EQUIPPED WITH:

Sony Two Axis Digital Read Out

16" x 32" Electromagnetic chuck with OS Walker Control

Hydraulic Incremental Power Down Feed

Rapid Up/Down to Wheel Head

Spark Out

(2) Wheel Hubs

Manual

Coolant Tank and Pump

Spindle Motor: 5 HP, Wired for 3 Phase, 60 Cycle, 220 Volts

Hydraulic Pump Motor: 2 HP

Vertical Rapid Feed Motor: 1/2 HP


Machine: 96" LR x 80" FB x 88" High x Approx. 7,780 Lbs.

Coolant Tank: 40" LR x 30" FB x 36" High
