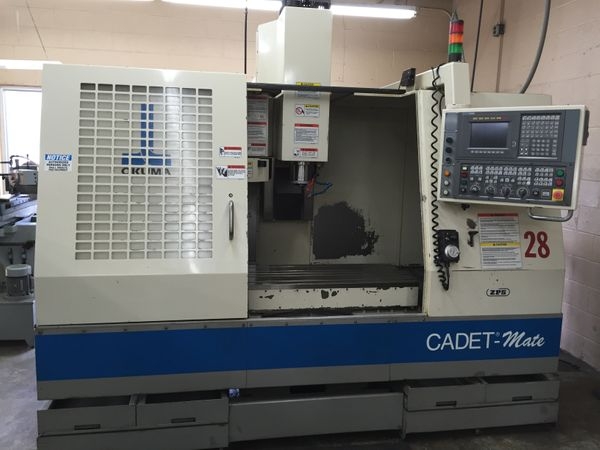

Used OKUMA CADET MATE 4020 Vertical Machining Center
Pre-owned OKUMA CADET MATE 4020 1998 Vertical Machining Center for only $24,900. This Vertical Machining Center has average cutting time and is equipped with a OSP 700M control. This CNC Machine is currently located in MA. This OKUMA Vertical Machining Center is the only one in stock and available for a limited time. Get a quote today on this CADET MATE 4020 before it's gone.
Specifications:
X Axis Travel: 40"
Y Axis Travel: 20"
Z Axis Travel: 20"
Rapid Rate X Axis: 941 IPM
Rapid Rate Y Axis: 941 IPM
Rapid Rate Z Axis: 475 IPM
Table Size: 47" x 20"
Max Table Load: 1,100 LBS
Spindle Motor: 15 HP
Spindle Speed: 8,000 RPM
Spindle Taper: 40 CT
Tool Changer: 20 ATC
Max Torque: 90ft-lb @ 2000 RPM
Max Tool Weight: 13.2 lbs
Max Tool Dia: 5.90 ”
Max Tool Length: 12?
Tool Changing Time: 3.6 Seconds
Cutting Feed Rates: 475 Inch Per Minute
Spindle Nose to Table (Min.- Max.): 6.1? – 26.1?
Dimensions: 150" x 92" x 99"
Weight: 11,000 LBS
Y Axis Travel: 20"
Z Axis Travel: 20"
Rapid Rate X Axis: 941 IPM
Rapid Rate Y Axis: 941 IPM
Rapid Rate Z Axis: 475 IPM
Table Size: 47" x 20"
Max Table Load: 1,100 LBS
Spindle Motor: 15 HP
Spindle Speed: 8,000 RPM
Spindle Taper: 40 CT
Tool Changer: 20 ATC
Max Torque: 90ft-lb @ 2000 RPM
Max Tool Weight: 13.2 lbs
Max Tool Dia: 5.90 ”
Max Tool Length: 12?
Tool Changing Time: 3.6 Seconds
Cutting Feed Rates: 475 Inch Per Minute
Spindle Nose to Table (Min.- Max.): 6.1? – 26.1?
Dimensions: 150" x 92" x 99"
Weight: 11,000 LBS
Equipped With:
OSP 700M
Seller:
Stephen (Machine Shop in USA)
