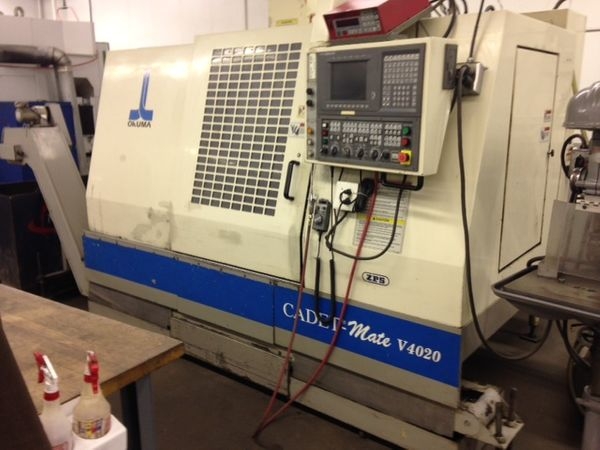

Used OKUMA CADETV4020 Vertical Machining Center
Pre-owned OKUMA CADETV4020 1997 Vertical Machining Center. This Vertical Machining Center has average cutting time and is equipped with a CNC control. This CNC Machine is currently located in New York. This OKUMA Vertical Machining Center is available for a limited time.Get a quote today on this CADETV4020 before it's gone.
Specs:
X Axis Travel: 40"
Y Axis Travel: 20"
Z Axis Travel: 17.7"
Rapid Rate X Axis: 591 IPM
Rapid Rate Y Axis: 591 IPM
Rapid Rate Z Axis: 591 IPM
Table Size: 47.25" x 20"
Max Table Load: 700 LBS
Spindle Motor: 15 HP
Spindle Speed: 15,000 RPM
Spindle Taper: 40 CT
Tool Changer: 80 ATC
Spindle Face to Table Surface 7.87" - 27.87"
Tool Storage Capacity 20
Maximum Tool Diameter 3.54"
Maximum Tool Length 11.8"
Maximum Tool Weight 17 Lbs.
Dimensions: 110" x 79" x 114"
Weight: 8,800 LBS
Y Axis Travel: 20"
Z Axis Travel: 17.7"
Rapid Rate X Axis: 591 IPM
Rapid Rate Y Axis: 591 IPM
Rapid Rate Z Axis: 591 IPM
Table Size: 47.25" x 20"
Max Table Load: 700 LBS
Spindle Motor: 15 HP
Spindle Speed: 15,000 RPM
Spindle Taper: 40 CT
Tool Changer: 80 ATC
Spindle Face to Table Surface 7.87" - 27.87"
Tool Storage Capacity 20
Maximum Tool Diameter 3.54"
Maximum Tool Length 11.8"
Maximum Tool Weight 17 Lbs.
Dimensions: 110" x 79" x 114"
Weight: 8,800 LBS
Owner:
Ted (Machine Shop in USA)
