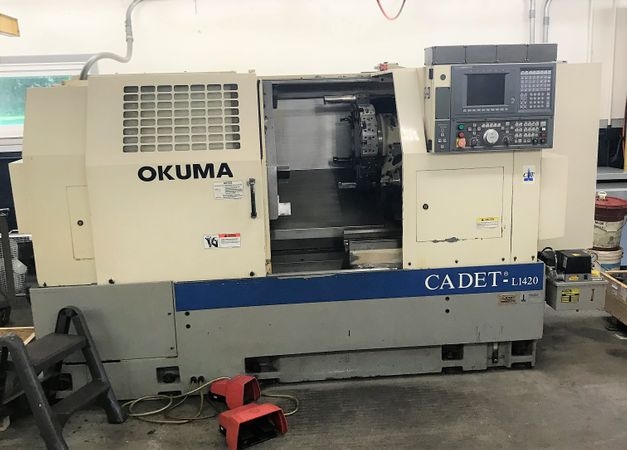

Pre-owned OKUMA L1420 1997 CNC Lathe. This CNC Lathe has average cutting time and is equipped with a OSP 700L control. This CNC Machine is currently located in Ohio. This OKUMA CNC Lathe is available for a limited time.
Rigging:
$1,200
Specs:
Bar Capacity: 3"
Chuck Size: 10"
Spindle Speed: 3,000 RPM
Spindle Motor: 30 HP
X Axis Travel: 9.1"
Z Axis Travel: 26"
Rapid Rate Z Axis: 591 IPM

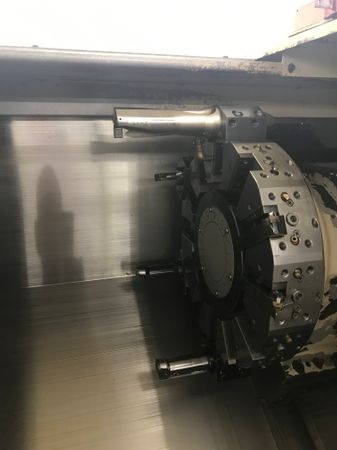

Turret Tools: 12 Station
Rapid Rate X Axis: 787 IPM
Max Turning Dia: 14.17"
Max Turning Length: 26"
Max Swing: 24.41"
Spindle Nose: A2-8
Spindle Bore: 3.54"
Turret Index Time: 1 Second
Tailstock Quill Dia.: 3.94"
Tailstock Quill Stroke: 4.72"
Tailstock Taper: MT-5
Dimensions: 126" x 76" x 80"
Weight: 13,500 LBS
Chuck Size: 10"
Spindle Speed: 3,000 RPM
Spindle Motor: 30 HP
X Axis Travel: 9.1"
Z Axis Travel: 26"
Rapid Rate Z Axis: 591 IPM
Turret Tools: 12 Station
Rapid Rate X Axis: 787 IPM
Max Turning Dia: 14.17"
Max Turning Length: 26"
Max Swing: 24.41"
Spindle Nose: A2-8
Spindle Bore: 3.54"
Turret Index Time: 1 Second
Tailstock Quill Dia.: 3.94"
Tailstock Quill Stroke: 4.72"
Tailstock Taper: MT-5
Dimensions: 126" x 76" x 80"
Weight: 13,500 LBS
Options:

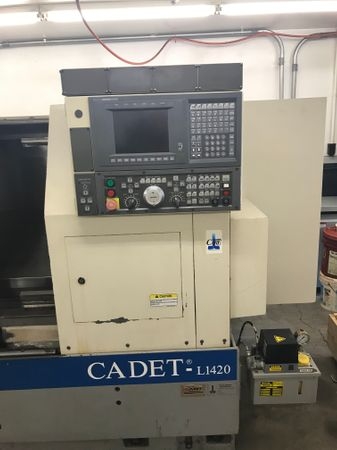

OSP 700L
Chip Conveyor
Tool Presetter
Tailstock
IGF Conversational CNC
Chip Conveyor
Tool Presetter
Tailstock
IGF Conversational CNC
