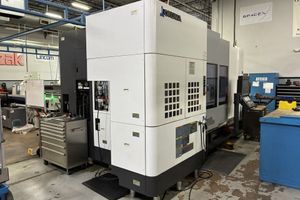

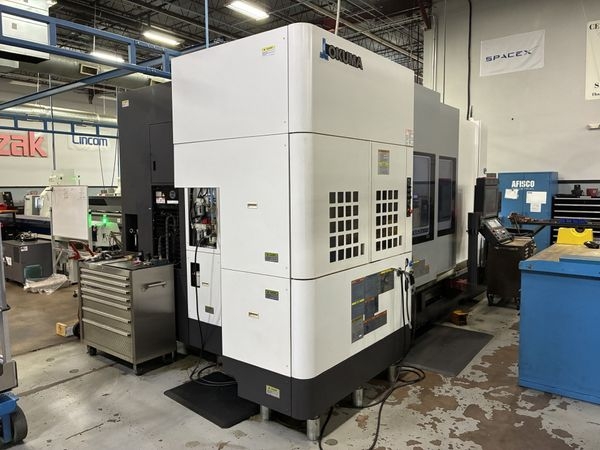

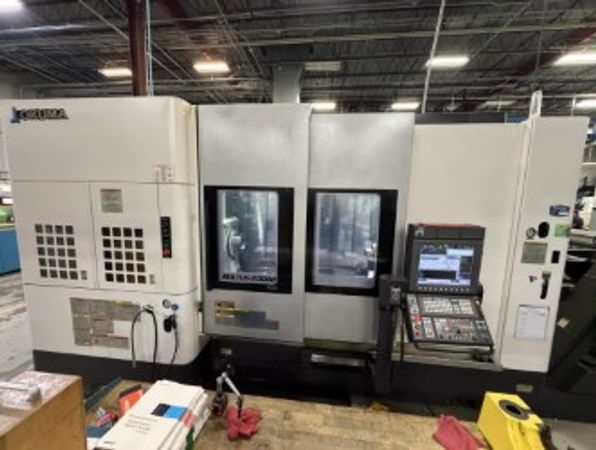

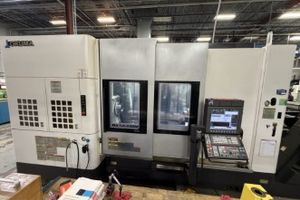

Swing over Bed: 25.59"
Distance Between Centers 74.33"
Max Recommended Turning Diameter, Upper Turret 25.59"
Max Recommended Turning Diameter, Lower Turret 12.59"
Max Recommended Turning Length with Std Chuck(s): 63.14"
Travel, X-Axis, Upper Turret: 25.39"
Travel, X-Axis, Lower Turret: 9.25"
Travel, Y-Axis, Upper Turret: 9.84" (+/- 4.92")
Travel, Z-Axis, Upper Turret: 62.99"
Travel, Z-Axis, Lower Turret: 57.52"
Travel, W-Axis (Sub-Spindle) 53.52"
B-Axis Travel (H1 Turret) 240 Degrees (-30 to +210)
C-Axis (Main Spindle) 360 Degrees
C-Axis (Sub Spindle) 360 Degrees
Rapid Travel IPM X-Axis, Upper Turret: 1968
Rapid Travel IPM Y-Axis, Upper Turret: 1575
Rapid Travel IPM Z-Axis, Upper Turret: 1968
Rapid Travel IPM X-Axis, Lower Turret: 984
Rapid Travel IPM Z-Axis, Lower Turret: 1575
Rapid Travel IPM W-Axis: 1181
Big Bore configuration
2-Speed Motor by Winding, Integral Spindle Type
Spindle nose A2-8
Spindle Speed 50-4200 RPM range
Spindle Motor 30 / 25 / 20 HP, 315 / 245 / 206 ft-lbs torque, 10 min / 20 min / continuous
Spindle bore 3.58”
Bar Capacity 3”
Sub-Spindle
2-Speed Motor by Winding, Integral Spindle Type
Spindle nose A2-6
Spindle Speed 45-5000 RPM range
Spindle Motor 30 / 25 / 20 HP, 315/ 255 / 207 ft-lbs torque, 10 min / 20 min / continuous
Spindle bore 2.44”
draw tube ID 2.04”
ATC
ATC 80 Station
Tool Type Capto C6
Tool Length: 15.74”
Max Tool Diameter: 3.54” with adjacent tool / 5.12” without adjacent tool
Max. Tool Weight: 22 lbs
Power Requirement, 208 Volts, kVA without Optional Equipment, Standard Spindle 67.4
Floor Space Required W x D x H (without Chip Conveyor) 213.6" x 117.9 x 116.3"
Weight (lbs): 35640
Equipped With (subject to buyer verification):
Okuma OSP P300S-A THiNC Control
MACHINE AOT IGF P4 ATC LATHE
CHUCK HI/LO PRESSURE SWITCHABLE, LEFT (MAIN)
COOLANT LEVEL CHECK, LOW
CHUCK HI/LO PRESSURE SWITCHABLE, RIGHT (SUB)
200 HOUR LUBE TANK
BARFEEDER INTERFACE, UNIVERSAL TYPE, HARDWIRED
AUTO DOOR (LEFT AND RIGHT) WITH RUBBER SWITCH
EXTERNAL PROGRAM SELECT C (BCD EXPRESSION) 4 DIGITS, ABX EIP
PARTS CATCHER, 2-SADDLE (2S), SUB SIDE
ROBOT LOADER INTERFACE TYPE D, (LATHE), ABX EIP
5-AXIS TUNING SYSTEM, STANDARD
C-AXIS SYNCHRONIZE FUNCTION, BOTH SPINDLES
HELICAL CUTTING FOR X-C-Z
Y-AXIS OFF-CENTER TURNING FUNCTION
SUPER NURBS TYPE A
GAUGING DATA PRINTOUT FUNCTION
C-AXIS AUTO ZERO OFFSET FUNCTION, BOTH SPINDLES
RENISHAW INSPECTION PLUS SOFTWARE W/GUI
Z-AXIS AUTO ZERO OFFSET FUNCTION, BOTH SPINDLES
BB SPINDLE (A2-8) W/SR1781 CYL.+DTUBE F/BB210 CHUCK, LEFT
NC B-AXIS WITH CONTOURING
ATC 80 CAPTO-C6 WITH BAR FEED COVER
CONVEYOR, HINGE WITH FILTER, HIGH (LONG BED)
AUTO GAUGING RENISHAW RMP600 RMI-Q CAPTO-C
TOUCHSETTER AUTO FOR 2 SADDLE
SHOWER COOLANT, TYPE B, NIAGARA
PREP FOR MIST COLLECTOR, 6 INCH, LATHE (LONG BED)
Y-AXIS GAUGING, WITH SLOPE GAUGING
NEGATIVE TOOL RADIUS COMPENSATION
LATHE TOOL INDEX FUNCTION - MULTI EDGE, 12 POSITION
5-AXIS MACHINING KIT
SPARE M-CODES, 8 SETS - LATHE
CHUCK OPEN/CLOSE CONFIRMATION CE SPEC (BOTH)
TOOL CENTER POINT CONTROL II
MP Systems Variable flow Twin 8 GPM
MP Systems mist collection system
MP Systems AK CB40
Only Misc Tooling for Lower Turret
Main (Left) Spindle: KITAGAWA BB210-A8 10" CHUCK F/A2-8 SPINDLE NOSE
Sub (Right) Spindle: BB208 Kitagawa 8" 3-Jaw Chuck / A2-6
Kitagawa-Northtech M75x2 Thread Charge
**NO Capto Tooling is Include
