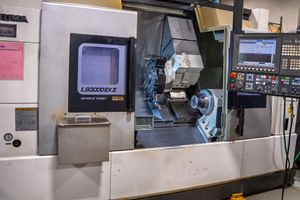

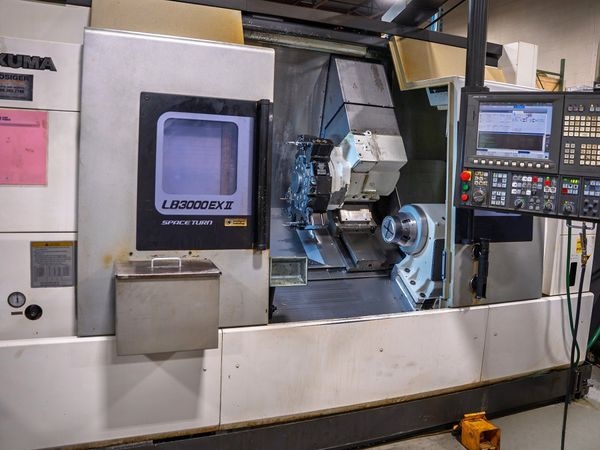

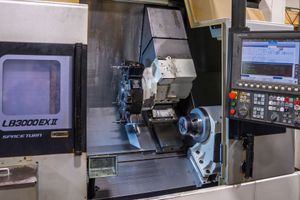

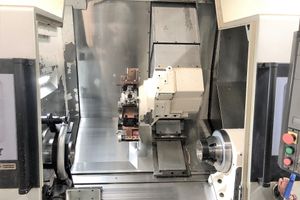

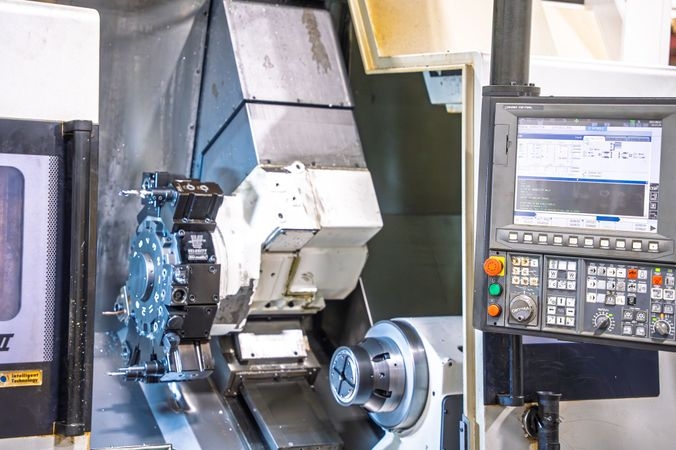

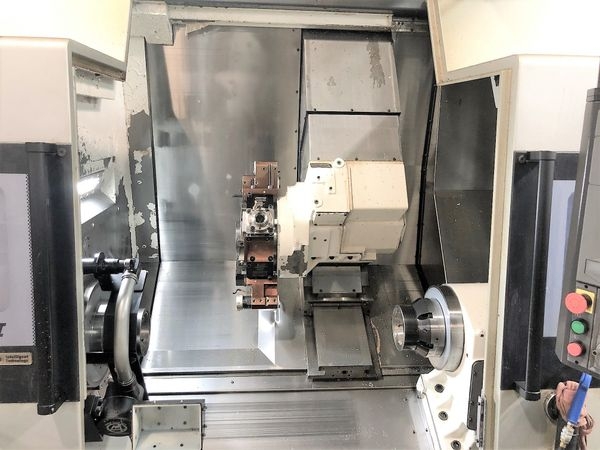

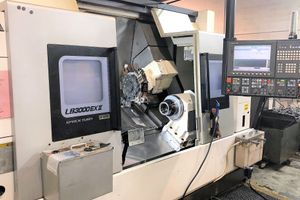

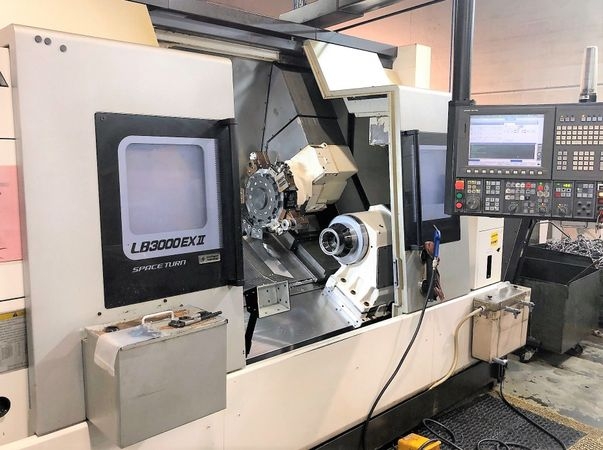

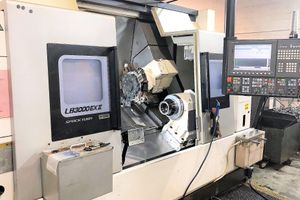

2014 OKUMA LB3000EXMYW

Bar Capacity: 3.18"
Chuck Size: 10"
Spindle Speed: 4,200 RPM
Spindle Motor: 15 HP
X Axis Travel: 10.24"
Z Axis Travel: 39.76"
Dimensions: 151" x 80" x 97"
Weight: 13,200 LBS
swing: 22.83in
turning diameter: 16.14in
center distance: 40.16in
x-axis travel: 10.24in
z-axis travel: 41.93in
rapid traverse (x/z): 9,841,181ipm
spindle nose: A2-8
main motor: 30hp
tool presetter: Yes

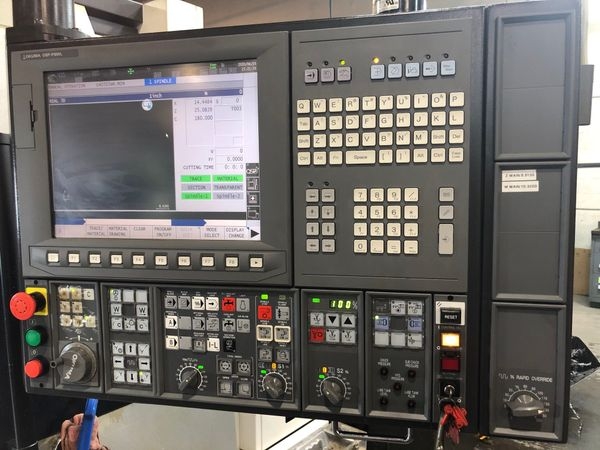

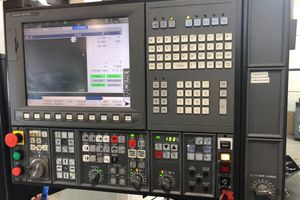

control: OSP-P200L
5-axis programmable tailstock: Programmable Quill
sub-spindle: 8 to 10in
Y Axis Travel: 4.73in
W Axis Travel: 35.4in
C Axis Index: 0.001°
Live Tooling: yes
Live Tooling Speed: 6,000rpm
Live Tooling Motor: 9.5hp

Microcentric CB80-NX/A8 (Main) and CB80-NX/140 (Sub)
Big Bore w/Cyl SS1881C01/D Tube
Chip Conveyor
Parts Catcher
Spare M Codes, 8 Sets

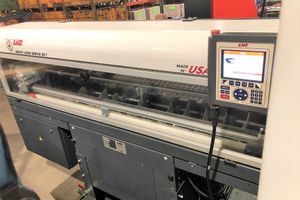

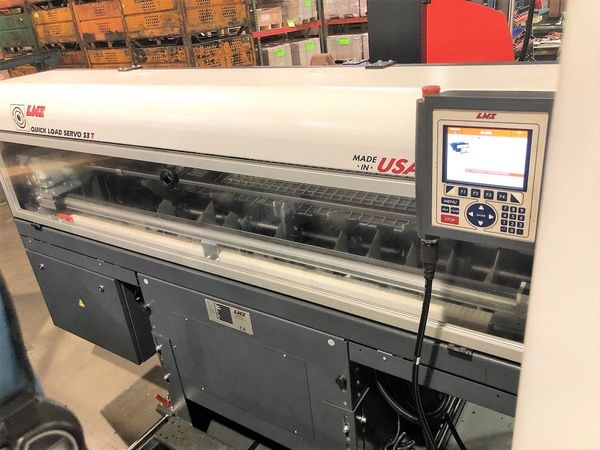

LNS Bar Feeder, QLS3T, 2017

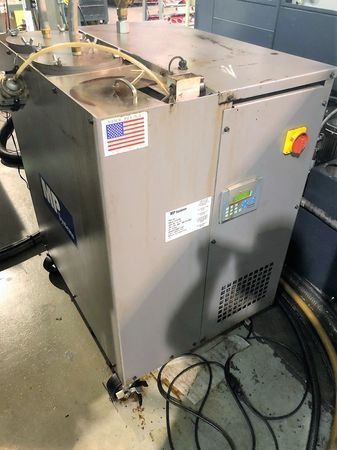

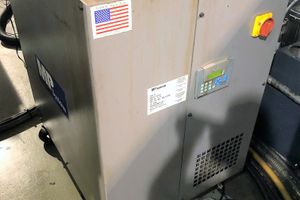

High Pressure Coolant, MP Systems, RF, High coolant system, 1000 psi

Machine / Spindle Run Data
Machine On - 24,877 (hrs)
NC Run - 864 (hrs)
Spindle Run - 3,990 (hrs)
Cutting Time - 681 (hrs)

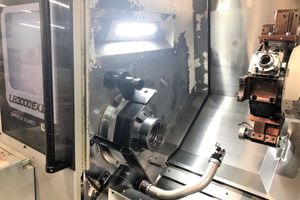

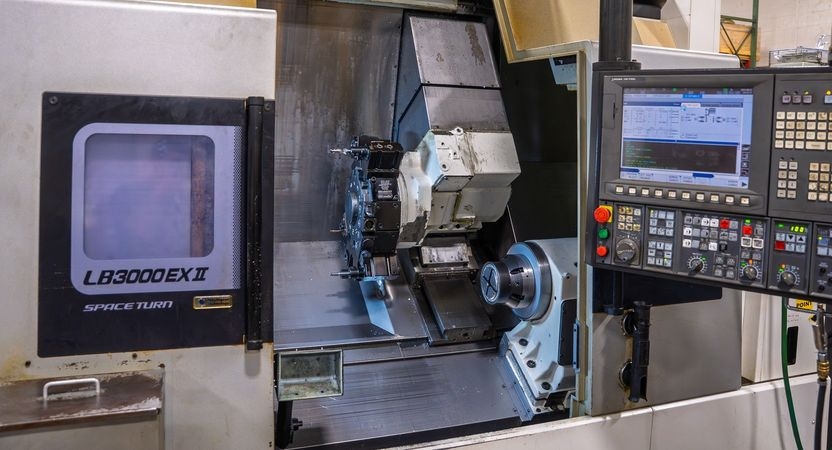

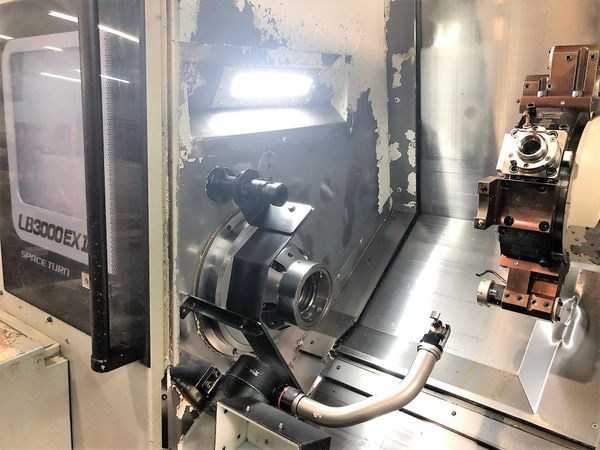

(Note: Picture has machine with a Kitagawa Chuck on the main spindle. We will replace this with the
original CB80-NX/A8 on the main)

Chip Conveyor
Tool Presetter
Parts Catcher

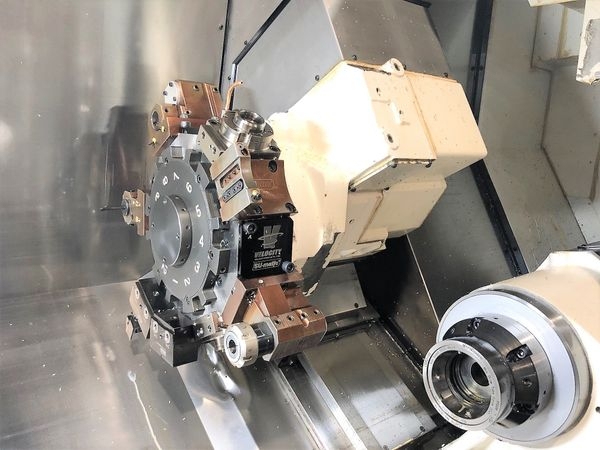

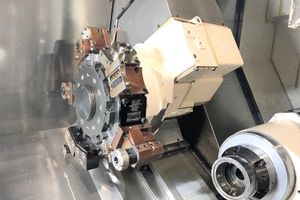

Live Tooling
Sub Spindle
Y Axis
5 Axis
