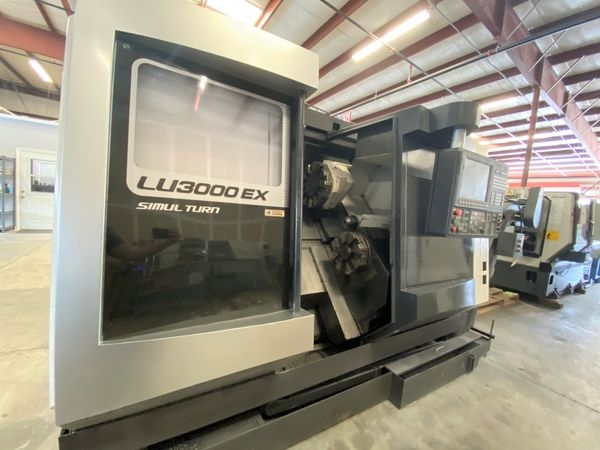

Used OKUMA LU3000EX600 CNC Lathe
Pre-owned OKUMA LU3000EX600 2016 CNC Lathe. This CNC Lathe has average cutting time and is equipped with a OSP P300 control. This CNC Machine is currently located in Minnesota. This OKUMA CNC Lathe is available for a limited time. Get a quote today on this LU3000EX600 before it's gone.
Specs:
Bar Capacity: 2"
Chuck Size: 8"
Spindle Speed: 5,000 RPM
Spindle Motor: 30 HP
X Axis Travel: 10.23"
Z Axis Travel: 26.96"
Rapid Rate Z Axis: 590 IPM
Turret Tools: 12 + 8 Station
Rapid Rate X Axis: 472 IPM
Max Turning Dia: 16.15"
Max Turning Length: 26.3"
Max Swing: 22.84"
Turret Indexing Time .7 Sec
Spindle Nose A2-8
Dimensions: 120" x 88" x 84
Weight: 16,000 LBS
Chuck Size: 8"
Spindle Speed: 5,000 RPM
Spindle Motor: 30 HP
X Axis Travel: 10.23"
Z Axis Travel: 26.96"
Rapid Rate Z Axis: 590 IPM
Turret Tools: 12 + 8 Station
Rapid Rate X Axis: 472 IPM
Max Turning Dia: 16.15"
Max Turning Length: 26.3"
Max Swing: 22.84"
Turret Indexing Time .7 Sec
Spindle Nose A2-8
Dimensions: 120" x 88" x 84
Weight: 16,000 LBS
Options:
OSP P300
Chip Conveyor
Tailstock
Coolant Pan
Chip Conveyor
Tailstock
Coolant Pan
Owner:
Laura (Machine Shop in MN)
