2002 SHODA MAXXIM TWIN

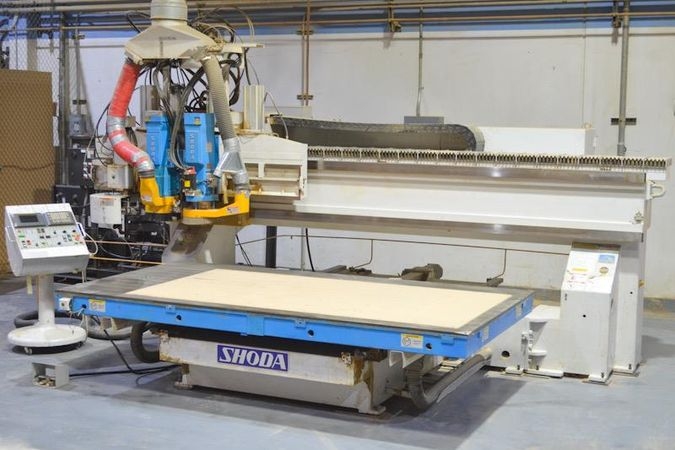

SHODA "MAXXIM" CNC ROUTER (MULTIPLE SPINDLE)
Year: 2002: Serial No.: MXM-G0101



SHODA MAXXIM 5' x 10' 2-Head CNC Router, with Vacuum Pump


Specifications:


Table size 63” x 122” x 29” H, with 3/4” Thick Top.
Travels: X-Axis 133", Y-Axis 73", & Z-Axis 10".
Max. machining feed speed 590 IPM.
Max. positioning speed for X & Y-Axes 1,180 IPM.

Equipped with:
Moving single-zone vacuum table, with Extra-hard phenolic surface, Front-to-back configuration.
(2) 12 kW (16 HP) - 18,000 RPM BT-30 Air-cooled electro-spindle, with Variable spindle speeds 3,000 - 18,000 RPM, AC Inverter, Dynamic spindle braking, Air/Oil mist lubrication.
16-Position Carousel-type automatic tool changer.

Features:
All Axes with Extra-large precision contour linear guideways.
Closed loop AC Servo drives & Precision ground ball screws.
Extended extra heavy-duty bridge for full 5' x 10 table coverage.
Centralized lubrication system for all spindle & roller bearings, ball screws & guides.

Operator Control:
FANUC "SERIES 21i-M" Mobile CNC Control, with 10.4" Display, RS-232 Port, PCMCIA Slot, (3) Axes Simultaneous control, Manual pulse generator, Inch & Metric operation, Feed rate & Spindle speed override, Helical interpolation, Full cutter compensation, Background editing features, EIO/ISO recognition.
Foot pedal control.

Complete with:
2001 TRAVAINI "1-501V1A-460" 40 HP Vacuum Pump, S/N S1433, with Hour meter reading 17,003 Hrs.
(10) Toolholders.
Dust Manifold.

Dimensions without Safety Rails: 202" x 155" x 110" H.
Dimensions of Vacuum Pump: 82" x 36" x 65" H.
