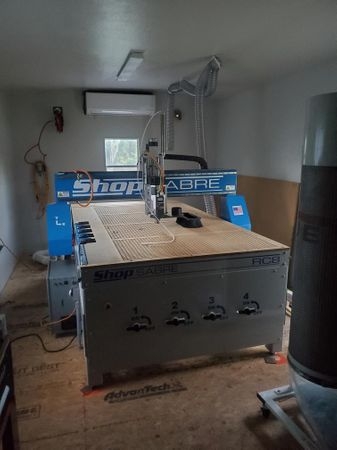

2020 SHOPSABRE RC8

ID:5441
Brand:SHOPSABRE
Model: RC8
Year:2020
Category:Router
Location:USA

Located In USA

Hello!

Machine Overview

Specs:

Table Bed Cut Area (X Axis by Y Axis): 55” x 97” without ATC or 51” x 97” with ATC option
Gantry Clearance: 8” Standard
Maximum Travel Speeds on X & Y: 1500IPM with Servo Option (CUT SPEEDS WILL VARY)
Maximum Travel Speeds on Z: 500IPM as quoted
Z Travel: 9”
Machine Weight: 2100 lbs.
Machine Foot Print (Including Gantry): 89” x 132” x 80”
Repeatability: +/- .002”
Machine Structure: Steel Tube Frame- Welded
Gantry Structure: Large Structural Tube Steel Bridge with Tube Steel Uprights
X & Y Axis Drive System: Rack and Pinion with Dual Y Axis and Single X Axis – Includes ShopSabre Floating Drive Technology and over-sized Rack Gears and Rack with Planetary Gear Drives
Z Axis Drive System: Center Driven Anti-Backlash Harden Steel Ball Screw by THK/HiWin
Bearing System: 25MM Linear Guide Rails and Bearings with Quad Roller Sets and Triple Seal by THK/HiWin
Controller: ShopSabre WINCNC Advanced Controller
PC System: Included with Solid State Hard Drive and PCI Controller Board Installed
Networkable: Yes
PC to PC Connectivity for Diagnosis and Training: Yes
Software: Vectric
Tech Support: Included – Life-time
Controller Software Updates: Included
Manufacturer: United States – ShopSabre Facility – Lakeville, Minnesota 55044
Life-Time Tech Support (Phone/Email/PC2PC)

Options:

Shopsabre Computer System
Single phase

Description:

Pre-owned SHOPSABRE RC8 2020 Router. This Router has average cutting time and is equipped with a Shopsabre Computer System control. This CNC Machine is currently located in USA. This SHOPSABRE Router is available for a limited time. Get a quote today on this RC8 before it's gone.
