Seller Needs:
$93,500|
4169
|
6
Please Select A Template To Add Content
Seller Needs:
Payment:
Specs:
MACHINE SPECIFICATIONS

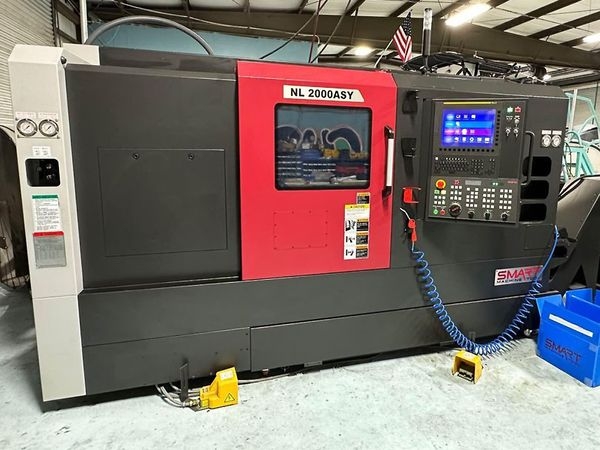

NL 2000ASY
CAPACITY
Swing over the bed 31.89”
Maximum turning diameter 16.18”
Maximum turning length 29.53”
MAIN SPINDLE
Chuck Size 6”
Spindle nose A2-5
Main spindle motor 15 / 25 hp
Spindle speed 6,000 rpm
Draw Tube ID 2.0”
C axis minimum 0.001 deg
SUB SPINDLE
Chuck Size 6”
Spindle nose A2-5
Main spindle motor 20 hp
Spindle speed 6,000 rpm
Draw Tube ID 2.0”
C axis minimum 0.001 deg
BED SLIDE & CARRIAGE
Rapid traverse (X / Y / Z / ZB) 1,181 ipm / 394 ipm / 1,181 ipm / 1,181 ipm
Guide ways Box Way
Bed structure 30° Slant bed
TURRET
Number of tool stations 12 (24) tools (BMT55)
Turret indexing speed (1 station) 0.15 seconds
Rotating Tool Spindle Motor 7
NL 2000ASY
CAPACITY
Swing over the bed 31.89”
Maximum turning diameter 16.18”
Maximum turning length 29.53”
MAIN SPINDLE
Chuck Size 6”
Spindle nose A2-5
Main spindle motor 15 / 25 hp
Spindle speed 6,000 rpm
Draw Tube ID 2.0”
C axis minimum 0.001 deg
SUB SPINDLE
Chuck Size 6”
Spindle nose A2-5
Main spindle motor 20 hp
Spindle speed 6,000 rpm
Draw Tube ID 2.0”
C axis minimum 0.001 deg
BED SLIDE & CARRIAGE
Rapid traverse (X / Y / Z / ZB) 1,181 ipm / 394 ipm / 1,181 ipm / 1,181 ipm
Guide ways Box Way
Bed structure 30° Slant bed
TURRET
Number of tool stations 12 (24) tools (BMT55)
Turret indexing speed (1 station) 0.15 seconds
Rotating Tool Spindle Motor 7
Options:
Fanuc Oi-TF Plus
Chip Conveyor
Tool Presetter
Parts Catcher
Live Tooling
Sub Spindle
Y Axis
5 Axis
290 PSI High Pressure Coolant
Through Tool Coolant
Air Blast
Chip Conveyor
Tool Presetter
Parts Catcher
Live Tooling
Sub Spindle
Y Axis
5 Axis
290 PSI High Pressure Coolant
Through Tool Coolant
Air Blast
Seller:
StepQ552
Location:
FL
