Machine Overview

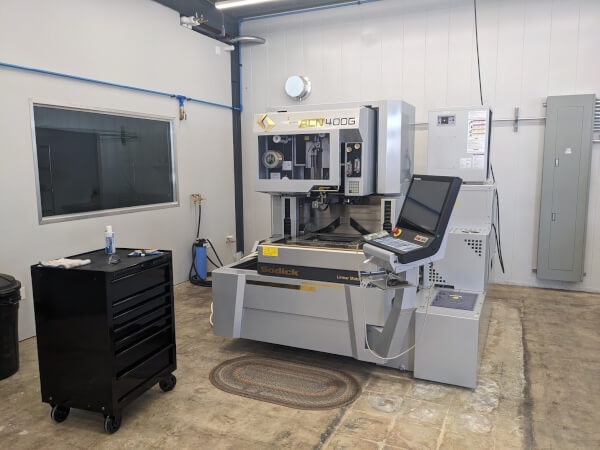

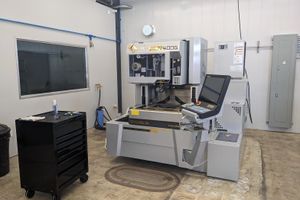

This 2022 SODICK ALN 400G is a well-crafted CNC machine known for its precise cutting capabilities. Designed to meet the demanding needs of your workshop, this machine offers versatility and ease of use in various machining applications.
The SODICK ALN 400G boasts an X Axis Travel of 15.75 inches, a Y Axis Travel of 11.81 inches, and a Z Axis Travel of 9.84 inches, allowing a wide range of motion for intricate cutting tasks. With the ability to handle a Max. Workpiece Size of 23.6” x 18.5” x 9.4” when using flushing, and a Max. Workpiece Weight of up to 1,102 lbs, it is equipped to manage large projects with precision.
When submerged, it handles a Max. Workpiece Size of 23.6” x 18.5” x 9.0” and a Max. Workpiece Weight of 771 lbs. With a Z-Axis Travel of 9.84 inches and both U-Axis and V-Axis Travel of 5.91 inches, it provides substantial flexibility in cutting angles and allows for a Max. Taper Angle of 25 degrees. The Wire Diameter Range spans from 0.004 inches to 0.012 inches, which accommodates various wire sizes required for different tasks.
The work tank features dimensions of 33.45'' x 24.01'', providing adequate space for operations. Access is made easy with the Distance from Floor to Table Top being 39.17 inches. The machine's Wire-Feed Speed is notable at a maximum of 16.5 inches per second, which enhances operational speed. The wire bobbin holds a weight of 22 lbs.
Dimensions of the SODICK ALN 400G are 87 inches x 96 inches x 87 inches, with an overall weight of 7,500 lbs, making it a substantial addition to any production line. This machine is built to support high-demand environments with robustness and consistency.
In summary, this 2022 SODICK ALN 400G is ideal for workshop settings requiring a reliable yet straightforward CNC machine. Its impressive specifications are tailored for detailed and complex metalworking tasks, providing an invaluable asset to your machining operations.
