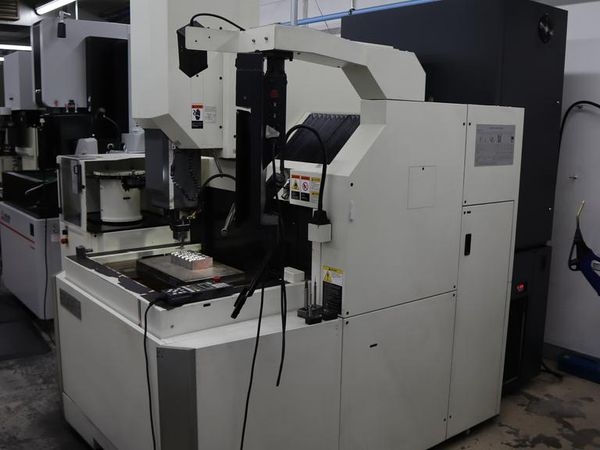

2018 MAKINO EDAF3

X Axis Travel: 17.7"
Y Axis Travel: 13.8"
Z Axis Travel: 13.2"
Table Size 27.5" x 19.7"
Max Workpiece Weight 1760lbs.
Specification:
Control Hyper i CNC Control
Tank Size 33.5" x 25.6" x 15.8"
Table Size 27.5" x 19.7"
Max Table Load 1,760 Lbs.
Travels (X/Y/Z) 17.7" x 13.8" x 13.8"
Spindle C-Axis Positioning Full C-axis Programmable .001 Degree
Generator Output 60 Amps - 100 Max Amps Machining Current
Tool Changer Capacity 16
Programmable Spindle Rotation Speeds MR Head 0-10 RPM
Spindle / Head Tooling Type MR, 0-10 RPM, 60 Amperes in Stationary and Live
Max Electrode Weight 132 Lbs (Full weight requires C-Axis Cover)
Dielectric Reservoir Capacity 194 Liter Tank / 450 Liter Total Dielectric
Equipped With:
Hyper-i CNC COntrol, MR Rotary Head, System 3R Auto Chuck, Full C-Axis Programmable, 16 Station
Automatic Electrode Changer, Remote Control Pendant, Chiller, Dielectric System

Type: CNC Wire
