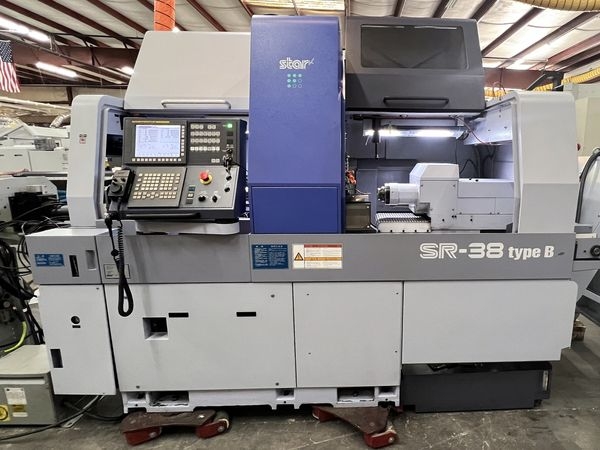

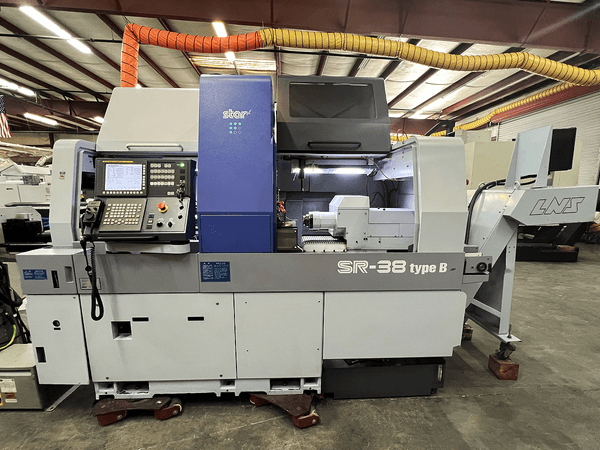

STAR SR38 TYPE B CNC Lathe

STANDARD 38mm (1-1/2in)
NON-GUIDE BUSH 42mm (1-21/32in)
Headstock Stroke 320mm (12-19/32in)
Tool: 5 tools on the front + 2 tools on the rear + 3 tools on the front : OP
5-Spindle Sleeve Holder

NUMBER OF TOOLS
Front 5 tools
Rear 5 tools

MAX. DRILLING CAPABILITY
23mm (29/32 in)

MAX. TAPPING CAPABILITY
M16 x P2.0

POWER NUMBER OF TOOLS
Cross Milling: 3 tools
Cartridge Type: at 1 position

MAX. DRILLING CAPABILITY
10mm (25/64in)

MAX. TAPPING CAPABILITY
M8 x P1.25

SPINDLE SPEED
Max 6,000 RPM

Drive Motor
2.2kW (continuous) / 3.0kW (5min./30%ED)

Rapid Feed Rate
36m/min(X1, Y1, Z1, X2, Z2)

Main Spindle Indexing Angle
C-axis control

Main Spindle Speed
Max. 7,000min-1

Main Spindle Motor
7.5kw (continuous) / 11kw (10min./25%ED)

Coolant Tank Capability
253? (359? : OP)

Dimensions (Width x Depth x Height)
107 x 51.75 x 83.46 in

Weight
9369lbs

Power Consumption
12.8 kVA

Fanuc 31i-MODEL B5
Chip Conveyor
Bar Feeder
Parts Catcher
Live Tooling
Sub Spindle
Y Axis
5 Axis
High Pressure Coolant
Parts Conveyor
Patriot 511 Barfeeder
Tri Mist Collector
Chiller
Fire Suppression
Over $30k in Live Tooling and Collets included
