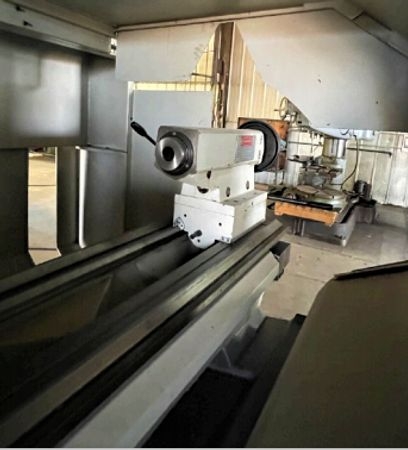

Used TOOLMEX TUR630AMN118 CNC Lathe
Pre-owned TOOLMEX TUR630AMN118 2007 CNC Lathe. This CNC Lathe has average cutting time and is equipped with a Fanuc 21TB control. This CNC Machine is currently located in Utah. This TOOLMEX CNC Lathe is available for a limited time. Get a quote today on this TUR630AMN118 before it's gone.
Specs:
Bar Capacity: 5.5"
Chuck Size: 16"
Spindle Speed: 1850rpm
Spindle Motor: 21hp
X Axis Travel: 15.3"
Z Axis Travel: 118"
Rapid Rate Z Axis: 315ipm
Turret Tools: 18
Rapid Rate X Axis: 315ipm
Max Turning Dia: 17"
Max Turning Length: 118" bc
Max Swing: 24.8"
Max. Workpiece Weight in Chuck: 1,320lbs
Max. Workpiece Weight bc: 4,400lbs
Max. Workpiece Weight bc with 2 Steadies: 6,600lbs
Dimensions: 205x99x83
Weight: 13,000lbs
Chuck Size: 16"
Spindle Speed: 1850rpm
Spindle Motor: 21hp
X Axis Travel: 15.3"
Z Axis Travel: 118"
Rapid Rate Z Axis: 315ipm
Turret Tools: 18
Rapid Rate X Axis: 315ipm
Max Turning Dia: 17"
Max Turning Length: 118" bc
Max Swing: 24.8"
Max. Workpiece Weight in Chuck: 1,320lbs
Max. Workpiece Weight bc: 4,400lbs
Max. Workpiece Weight bc with 2 Steadies: 6,600lbs
Dimensions: 205x99x83
Weight: 13,000lbs
Options:
Fanuc 21TB
Tailstock
Tailstock
Price:
$69,500
$49,900
$49,900
Payment:
Owner:
Jeannie (Machine Shop in UT)
