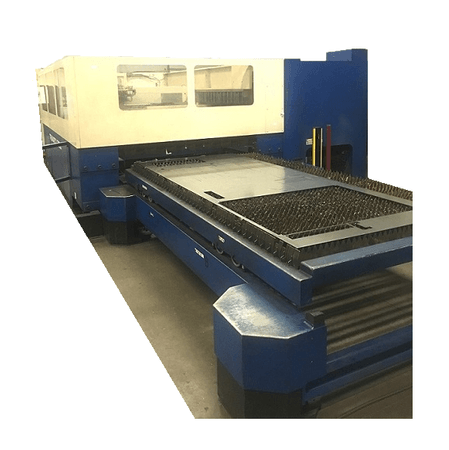

Used TRUMPF TRUMATICL3030 Laser
Specifications:
Resonator: Trumpf TLF 3000
Max Continuous Cutting Capacity: 3000 Watt
Table: 5' x 10'
X axis Travels: 120"
Y axis Travels: 60"
Z axis Travels: 5"
Max Work Piece Weight: 1,562 lbs.
Axis Parallel: 2400 IPM
Simultaneous: 3340 IPM
Floor Space: 420" x 340" x 80"
Machine Weight: 28,000 LBS.
Max Continuous Cutting Capacity: 3000 Watt
Table: 5' x 10'
X axis Travels: 120"
Y axis Travels: 60"
Z axis Travels: 5"
Max Work Piece Weight: 1,562 lbs.
Axis Parallel: 2400 IPM
Simultaneous: 3340 IPM
Floor Space: 420" x 340" x 80"
Machine Weight: 28,000 LBS.
Equipped With:
Siemens 840D
Auto Pallet Shuttle
Chiller
Dust Collector
Cutting Head
Trumpf TLF 300 Resonator
Auto Pallet Shuttle
Chiller
Dust Collector
Cutting Head
Trumpf TLF 300 Resonator
