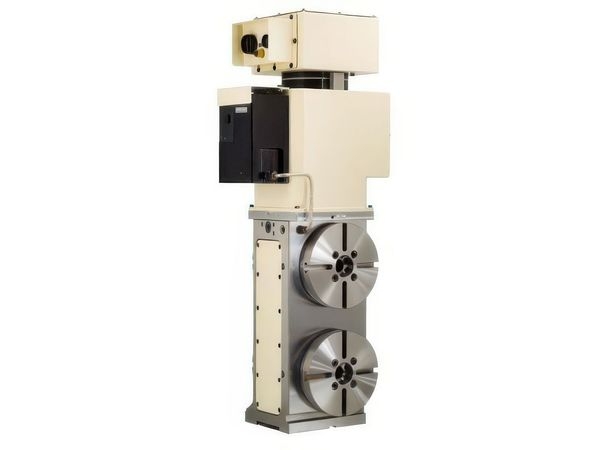

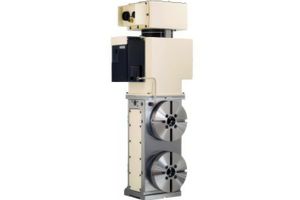

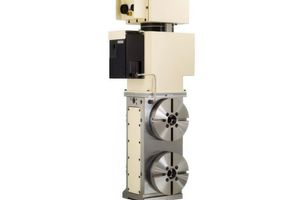

2021 TSUDAKOMA RT251-2-4RFJ 5 AXIS #14210

Table Model: RT-251
Table diameter mm: 200 x (2,4)
Center height mm: 135 & 385
Center bore
Nose Diameter mm: 55H7
Thru Diameter mm: 40
Table T-slot width: 12H8
Guide block width: 14h7
Servo motor (Fanuc): Alpha 4i
Maximum motor speed rpm: 5,000
Speed reduction ratio: 1/90
Maximum table speed rpm: 55.5
Inertia converted into motor shaft x 10-3kg.m2: .25
Clamp system Pneumatic Hydraulic**
Clamp torque @500psi Nm (ft. lbs.): 210 (154)
Indexing accuracy arc sec. ±22.5
Net Weight kg (lbs.):135 (297) quad
Allowable wheel torque Nm (ft. lbs.): 264 (194)
Allowable work inertia kg.m2: .48
Allowable work weight kg (lbs): 75/face plate (165/face plate)
Allowable load when table clamped:
Nm (ft. lbs.): 264 (194)
Nm (ft. lbs.): 392 (289)

The RT-251 has been designed for use on horizontal machining centers. The RT-251 is available with dual or quad face plates and can be accessorized with a swivel box for cable management. These tables are typically equipped with rotary joints for use in high production machining environments.
