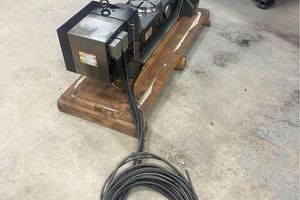

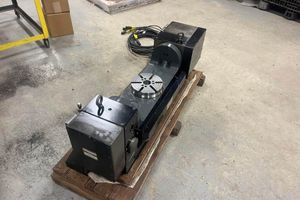

2013 HAAS TR210

ID:10489
Brand:HAAS
Model: TR210
Year:2013
Category:Tooling and Workholding
Location:Pennsylvania

Located In Pennsylvania

SHIPPING COST :

HAAS TR210 AI Chat

Loading ...

Machine Overview

Specs:

Platter Diameter: 8.30 in / 210 mm
Max Weight on Platter: 200 lb / 91.0 kg
Part Swing Max: 23.5 in / 597 mm
Number of Std T-Slots: 6 @ 60°

SPINDLE - A / TILT
Max Speed: 60 °/sec
Max Torque: 300 ft-lbs
Backlash: 30 arc-sec
Gear Ratio: 90:1
Timing: 2:1
Brake Torque @ 100 psi/6.9 bar: 400 ft-lbs

SPINDLE B / ROTARY
Max Speed: 60 °/sec
Max Torque: 210 ft-lbs
Runout Max: 0.0005 in
Backlash: 30 arc-sec
Gear Ratio: 90:1
Timing: 2:1
Brake Torque @ 100 psi/6.9 bar: 200 ft-lbs

INDEXING A / TILT
Max Rotation/Step: ± 120 °
Resolution: 0.001 °
Accuracy (±) : ± 15 arc-sec
Repeatability: 10 arc-sec

INDEXING B / TILT
Max Rotation/Step (with rotary control): 999.999 °
Resolution: 0.001 °
Repeatability: 10 arc-sec

Air Requirements: 150 psi

Description:

Pre-owned HAAS TR210 2013 Tooling and Workholding. This Tooling and Workholding has average cutting time and is equipped with a CNC control. This CNC Machine is currently located in Pennsylvania. This HAAS Tooling and Workholding is available for a limited time. Get a quote today on this TR210 before it's gone.
