Seller Needs:
$115,500|
566
|
3

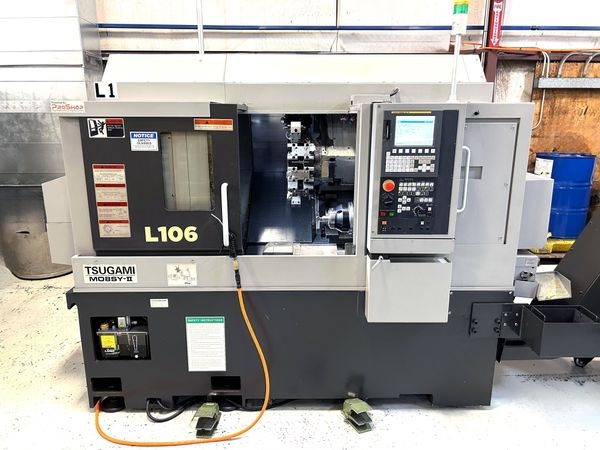

Pre-owned TSUGAMI M08SYII 2018 CNC Lathe. This CNC Lathe has average cutting time and is equipped with a CNC control. This CNC Machine is currently located in North Carolina. This TSUGAMI CNC Lathe is available for a limited ...Read More
Seller Needs:
Payment:
Specs:
Bar Capacity: 2"
Chuck Size: 8"
Sub Spindle: 6"
Spindle Speed: 4,500 RPM
Live Tooling: 5,000RPM
Spindle Motor: 15 HP
X Axis Travel: 8.7"
Z Axis Travel: 15.75"
Y Axis Travel: 3.94"
C Axis Travel: .001Deg
W Axis Travel: 19.92"
Rapid Rate Z Axis: 1,062 IPM
Turret Tools: 12 Station
Rapid Rate X Axis: 945 IPM
Max Turning Dia: 11"
Max Turning Length: 14.96"
Dimensions: 106" x 74" x 75"
Weight: 13,228 LBS
Chuck Size: 8"
Sub Spindle: 6"
Spindle Speed: 4,500 RPM
Live Tooling: 5,000RPM
Spindle Motor: 15 HP
X Axis Travel: 8.7"
Z Axis Travel: 15.75"
Y Axis Travel: 3.94"
C Axis Travel: .001Deg
W Axis Travel: 19.92"
Rapid Rate Z Axis: 1,062 IPM
Turret Tools: 12 Station
Rapid Rate X Axis: 945 IPM
Max Turning Dia: 11"
Max Turning Length: 14.96"
Dimensions: 106" x 74" x 75"
Weight: 13,228 LBS
Options:
Fanuc 0i-TF
Chip Conveyor
Parts Catcher
Live Tooling
Sub Spindle
Y Axis
Chip Conveyor
Parts Catcher
Live Tooling
Sub Spindle
Y Axis
Seller:
KatrZ470
Location:
NC
