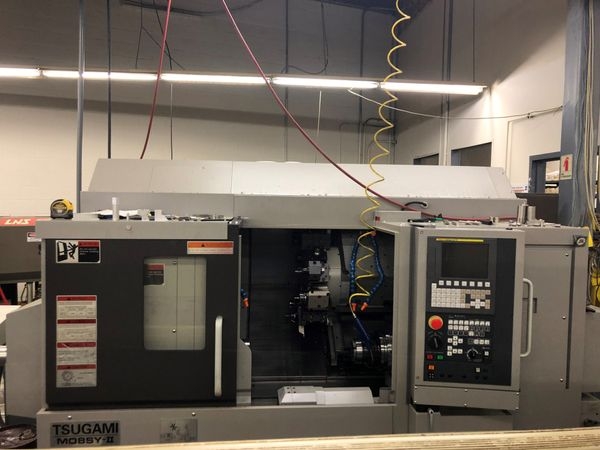

Used TSUGAMI M08SYII CNC Lathe
Pre-owned TSUGAMI M08SYII 2019 CNC Lathe for only $139,900. This CNC Lathe has average cutting time and is equipped with a Fanuc 0i-TF control. This CNC Machine is currently located in MA. This TSUGAMI CNC Lathe is the only one in stock and available for a limited time. Get a quote today on this M08SYII before it's gone.
Specifications:
Bar Capacity: 2"
Chuck Size: 8"
Sub Spindle: 6"
Spindle Speed: 4,500 RPM
Live Tooling: 5,000RPM
Spindle Motor: 14.8 HP
X Axis Travel: 8.7"
Z Axis Travel: 15.75"
Y Axis Travel: 3.94"
C Axis Travel: .001Deg
W Axis Travel: 19.92"
Rapid Rate Z Axis: 1,062 IPM
Turret Tools: 12 Station
Rapid Rate X Axis: 945 IPM
Max Turning Dia: 11"
Max Turning Length: 14.96"
Dimensions: 97.24" x 72.83" x 75.98"
Weight: 13,000 LBS
Chuck Size: 8"
Sub Spindle: 6"
Spindle Speed: 4,500 RPM
Live Tooling: 5,000RPM
Spindle Motor: 14.8 HP
X Axis Travel: 8.7"
Z Axis Travel: 15.75"
Y Axis Travel: 3.94"
C Axis Travel: .001Deg
W Axis Travel: 19.92"
Rapid Rate Z Axis: 1,062 IPM
Turret Tools: 12 Station
Rapid Rate X Axis: 945 IPM
Max Turning Dia: 11"
Max Turning Length: 14.96"
Dimensions: 97.24" x 72.83" x 75.98"
Weight: 13,000 LBS
Equipped With:
Fanuc 0i-TF
Chip Conveyor
Tool Presetter
Bar Feeder
Parts Catcher
Live Tooling
Sub Spindle
Y Axis
5 Axis
300 PSI High Pressure Coolant Thru Turret and Ejector
Spindle Chiller
Rigid Tapping on Main, Sub and Live Tool
Spindle and Turrett Air Purge
Tool Touch Setter
Removable Coolant Tank
Chip Conveyor
Tool Presetter
Bar Feeder
Parts Catcher
Live Tooling
Sub Spindle
Y Axis
5 Axis
300 PSI High Pressure Coolant Thru Turret and Ejector
Spindle Chiller
Rigid Tapping on Main, Sub and Live Tool
Spindle and Turrett Air Purge
Tool Touch Setter
Removable Coolant Tank
Price:
$139,900
Seller:
Ed (Machine Shop in USA)
