Upgrading Your CNC Lathe: Key Options and Their Benefits
Upgrading Your CNC Lathe: Key Options and Their Benefits

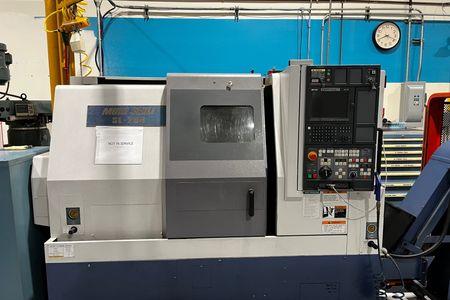

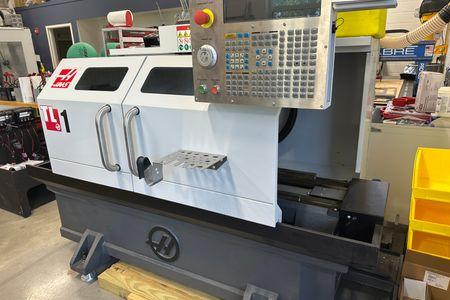

CNC lathes are essential tools in modern manufacturing, enabling precise machining of cylindrical parts. To maximize productivity, enhance capabilities, and improve efficiency, various upgrades and options can be integrated into a CNC lathe. In this article, we will explore some key upgrades, including Parts Catchers, Bar Feeders, Tailstock vs. Sub Spindle, Live Tooling, Tool Eyes, Automatic Door Open/Close features, and Chip Conveyors. We'll discuss the pros and cons of each option and provide an estimated price chart for these upgrades.
Key Upgrades and Options for CNC Lathes
1. Parts Catcher
Description: A parts catcher is a mechanism that automatically removes finished parts from the machine tool and places them in a designated area or bin.
Pros: Reduces manual handling of finished parts, minimizing labor costs. Increases productivity by allowing continuous operation without interruption.
Cons: Initial investment costs for installation. May require adjustments to ensure proper alignment and functionality.
2. Bar Feeder
Description: A bar feeder automatically feeds raw material into the CNC lathe, allowing for uninterrupted machining of long workpieces.
Pros: Increases efficiency by enabling continuous production. Reduces setup time and labor costs, especially for high-volume runs.
Cons: Higher upfront costs for installation. Requires additional space and careful planning for integration.
3. Tailstock vs. Sub Spindle
Description: The tailstock supports long workpieces, while a sub-spindle allows for machining from both ends of a part, reducing the need for manual handling.
Pros of Tailstock: Provides additional support for long parts, improving machining accuracy.
Cons of Tailstock: Limited functionality compared to a sub-spindle.
Pros of Sub Spindle: Enhances productivity by allowing simultaneous machining on both sides of the part.
Cons of Sub Spindle: Higher cost and complexity in setup.
4. Live Tooling
Description: Live tooling allows the CNC lathe to perform milling and drilling operations while the part is being rotated.
Pros: Increases versatility, enabling the production of more complex parts without the need for secondary operations. Reduces cycle times by integrating multiple machining processes.
Cons: Can add to the initial cost of the CNC lathe. Increased complexity may require more skilled operators.
5. Tool Eye
Description: A tool eye is a sensor that automatically measures tool length and diameter, ensuring accurate offsets and improved machining precision.
Pros: Reduces setup time by automating tool measurement. Enhances accuracy and consistency in machining operations.
Cons: Additional costs for installation and calibration. May require training for operators to utilize effectively.
6. Automatic Door Open/Close
Description: This feature allows for automated opening and closing of the CNC lathe's door during operation.
Pros: Improves operator safety by minimizing manual handling. Enhances workflow efficiency by reducing downtime when loading and unloading parts.
Cons: Can increase the initial cost of the machine. May require maintenance to ensure reliability over time.
7. Chip Conveyor
Description: A chip conveyor automatically removes metal chips and debris generated during machining, keeping the workspace clean and minimizing downtime for maintenance.
Pros: Improves safety by reducing slip hazards in the work area. Increases efficiency by ensuring continuous operation without manual chip removal.
Cons: Requires additional investment for installation and maintenance. May occupy additional space on the shop floor.
Estimated Price Chart for CNC Lathe Upgrades
| Upgrade Option | Estimated Cost |
|---|---|
| Parts Catcher | $2,500 - $5,000 |
| Bar Feeder | $15,000 - $35,000 |
| Tailstock | $2,000 - $6,000 |
| Sub Spindle | $20,000 - $35,000 |
| Live Tooling | $15,000 - $20,000 |
| Tool Eye | $2,000 - $5,500 |
| Automatic Door Open/Close | $3,000 - $6,500 |
| Chip Conveyor | $4,000 - $8,000 |
Conclusion
Upgrading your CNC lathe with these options can significantly enhance productivity, efficiency, and machining capabilities. Each upgrade offers distinct advantages and potential drawbacks, and careful consideration should be given to the specific needs of your manufacturing operation. By investing in the right features, manufacturers can improve their output, reduce labor costs, and ultimately increase profitability. When considering upgrades, it’s essential to evaluate the initial costs against the long-term benefits to ensure a solid return on investment in your CNC machining operations.
