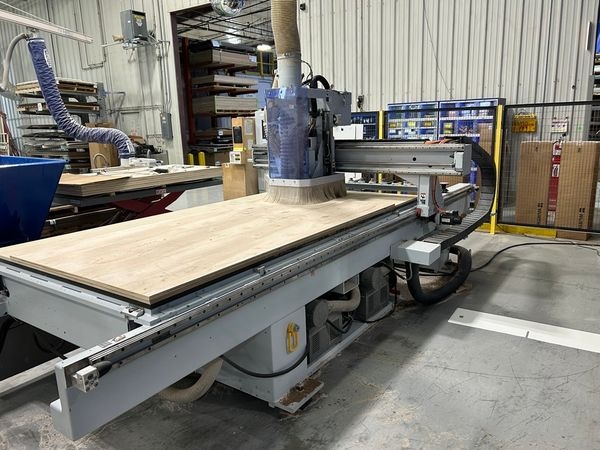

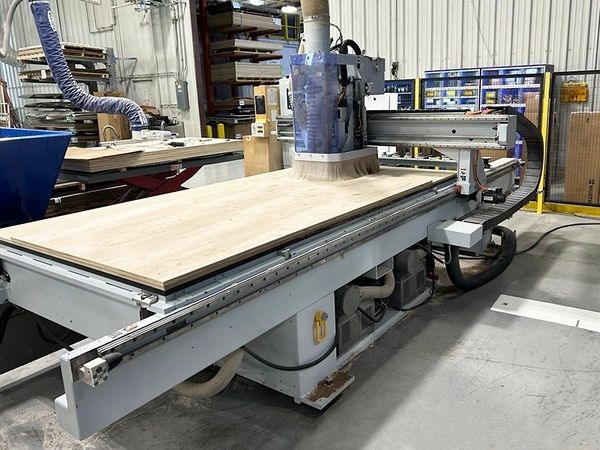

2015 WEEKE BHP 008 VANTECH 510

X Axis Travel:
Y Axis Travel:
Z Axis Travel:
Table Size:
Spindle Speed:
Spindle Motor:
5 x 10 nesting flat table
Z axis is 9.6 inches
Max material thickness is: 3.9 inches.
Speed:
"X" Axis is 236 FPM (72 MPM), "Y" axis is 203 FPM (62 MPM), "Z" axis 82 FPM (25 MPM);
The head travels via AC brushless drives & THK linear motion guides on all axes.
Worktable:

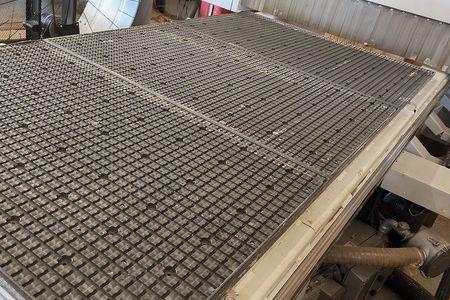

User-Friendly "S/C Tech MATRIX" grooved phenolic vacuum table for easy vacuum pod placement;
(3) Pneumatic locator/positioning pins in "X" axis & (1) pneumatic locator/positioning pins in "Y" axis.
(4) Table vacuum work zones, can be used independently or together for full table area Foot pedal vacuum
zone controls.
Machining:
(1) 12 HP (9 kW) High speed electro-spindle router with "HSK F 63" adaptor; constant duty, variable speed
from 1,250 - 24,000 RPM, RH or LH rotation.
(1) 9-Position ATC rack located at the end of machine.
Boring unit with 2 HP (1.5 kW) motor & (7) Independent vertical spindles with "Quick Change" drill bit
holders; programmable variable speed from 1,500 - 7,500 RPM;
Touch-off tool length measuring device.
Machine & Operator Control:
PC Front-End with WEEKE "PC 85T" + Windows "XP" + WoodWOP operating system.
17" TFT Color graphic monitor, keyboard for data entry, PC 85T hand control pendant; CD R/W & floppy
drives, EtherNET interface for LAN connection to office PC, RS-232 serial interface, USB ports.
"BECKHOFF" Programmable logic control for (3/4) axes, linear, circular & helical interpolation; the
controller is contained in a separate free-standing, dust-free control cabinet that can be placed at either
the LH or RH side of the machine.
Complete with:
(4) 100 m³/Hr Vacuum pumps; light curtain (machine will stop if operator enters work area), safety fencing,
separate control cabinet.
Dimensions:
Weight:
