Home / CNC Lathe / WFL / M 70 / 10718
Posted By PeteK900
BUY NOW
us-flag
Located In USA
SHIPPING COST :
Hello!

Machine Overview

Specs:
Chuck Size: 20"
Spindle Speed: 1,600 RPM
Spindle Motor: 85 HP
X Axis Travel: 24.4"
Z Axis Travel: 145"
Turret Tools: 24 Station
Max Turning Length: 118"
Max Swing: 29.5"
Min Machining Length: 17"
Distance Between Centers: 132.3"
Y Axis Travel: 1.8"
C Axis Increment: 0.001 Degree
Rotary Tool Motor: 20 HP
Rotary Tool Speed: 3,000 RPM

Dimensions: 288" x 144" x 144"
Options:
Chip Conveyor
Tailstock
Live Tooling
Y Axis
Siemens Sinumerik 840C CNC Control
VDI Straight Shank Turret
SMW Steady Rest 40mm-390mm
Coolant Through Tool Spindle
Comes with 40 tools holders and good amount of spare parts
Description:

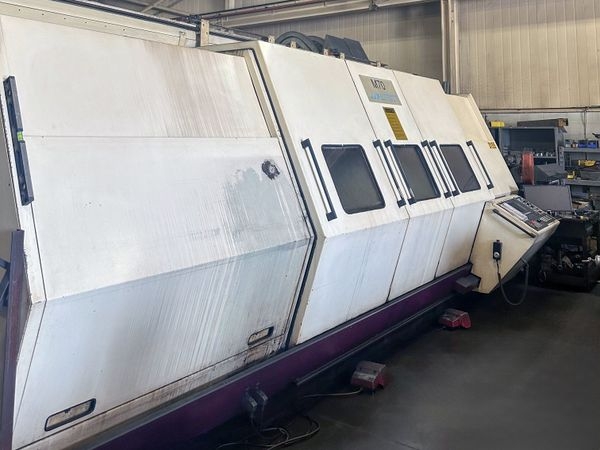

This 1996 WFL M 70 CNC Lathe is a piece of sturdy, well-constructed industrial machinery that has worked hard in a demanding environment. A major advantage of this lathe machine is the wealth of features that come with it.



Key upgrades and options include Chip Conveyor, Tailstock, Live Tooling and Y Axis. The machine is suited for both simple and complex tasks, thanks to these components. The Tailstock is beneficial in providing extra support for the workpiece, whereas the Chip Conveyor efficiently handles waste material. The Y Axis and Live Tooling allow the machine to perform multi-axis tasks.



A highlight of this machine is the Siemens Sinumerik 840C CNC Control. This advanced control system ensures smooth operation and accurate results. It simplifies complex jobs with easy-to-use controls and clear, simple commands.



The machine has a VDI Straight Shank Turret which gives a good grip on tools and improves the performance of the machine. Also, the machine comes with Coolant Through Tool Spindle which helps in prolonging tool lifespan and ensuring the smooth running of the machine.



In terms of support features, the machine comes equipped with a SMW Steady Rest. The size range of 40mm-390mm makes it a versatile component, ensuring the stability of the workpiece in a myriad of tasks.



The inclusion of 40 tool holders facilitates easy tool swaps during operations and makes for swift project turnovers. A healthy amount of spare parts are part of the deal, sweetening the bargain on an already solid machine. They provide assurance to the buyer, allowing for swift, in-house replacements should a component require it.



Overall this 1996 WFL M 70 CNC Lathe offers well-kept quality and a multitude of features that ensures it is up to any task thrown at it. With easily swappable parts and nifty support features, it is indeed a machine ready for the heavy demands of any industry.
