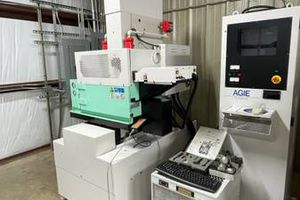

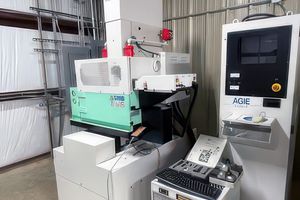

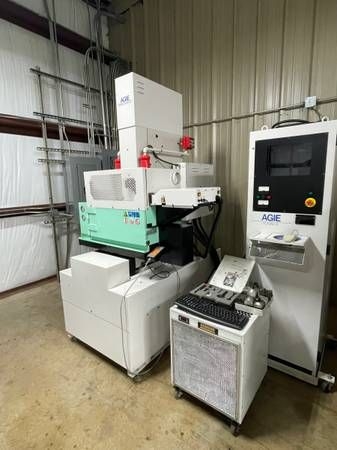

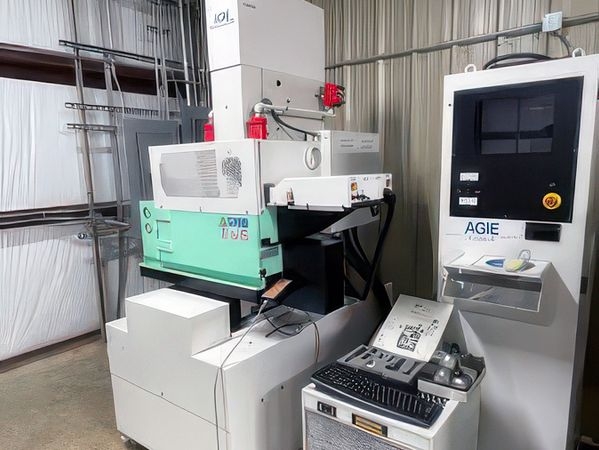

2002 AGIE MONDO 20 STAR
- ID:16298
- Brand:AGIE
- Model: MONDO 20 STAR
- Year:2002
- Category:EDM
- Location:Texas
Machine Overview
Y Axis Travel: 9.85”
Z Axis Travel: 9.85”
C Axis Rotation: 360°
Workpiece Dim: 15.75" x 24.8" x 6.5"
Work Tank Dim: 27.5" x 17" x 10.6"
Worktable Size:15.75" x 11.8"
X Axis Travel: 11.8”
X&y&z/c Axis Drives Dc-servo Motor
Resolution: 0.001mm 0.00004 In
Rapid Traverse Rate X/Y/Z Axis: 28.3 IPM
Machine Dimension: 61"x53"x92"
Max Table Load: 441 lbs
Max Electrode Weight: 55 lbs
Weight 2,790lbs
14” Color Led Monitor
Remote Control Unit
Magnetic Chuk
4-position Automatic Tool Changer (act)
Programable Flush
3r Toolings
Remcor Chiler Unit
C-axis Assembly
60 Gallons Filtered EDM Fluid
Pre-owned AGIE MONDO 50 STAR 2002 EDM. This EDM has average cutting time and is equipped with a CNC control. This CNC Machine is currently located in Florida. This AGIE EDM is available for a limited time. Get a quote today on this MONDO 50 STAR before it's gone.
