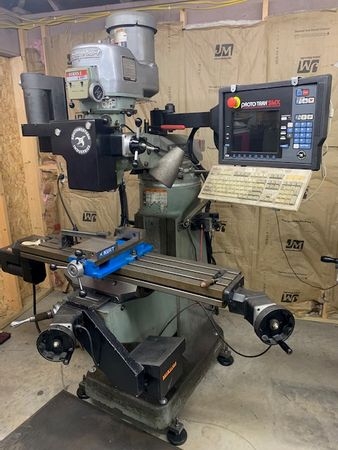

Pre-owned BRIDGEPORT Series 1 ProtoTRAK 2007 Vertical Machining Center. This Vertical Machining Center has average cutting time and is equipped with a Proto Trak SMX control. This CNC Machine is currently located in USA. Thi...Read More
Notify Me:
Specs:
Table Size / Work Surface: 9" x 49"
X Axis Travel: 36"
Y Axis Travel: 12"
Z Axis Travel: 16"
Ram Travel / Quill Travel: 12" / 5"
Throat Distance min/max: 6.7" / 18.7"
Spindle Speed Low / High: 60 - 500 / 500 - 4,200 RPM
Spindle Motor: 2 H.P.
Spindle Taper: ISO 30
Equipped With:
Proto Trak SMX CNC Control
10.4" Color Active Matrix Screen
Auto Lubrication
Hi-Lo Speed Range
Manual and CNC Mode
Runs Proto Trak Conversational and G-Code
X Axis Travel: 36"
Y Axis Travel: 12"
Z Axis Travel: 16"
Ram Travel / Quill Travel: 12" / 5"
Throat Distance min/max: 6.7" / 18.7"
Spindle Speed Low / High: 60 - 500 / 500 - 4,200 RPM
Spindle Motor: 2 H.P.
Spindle Taper: ISO 30
Equipped With:
Proto Trak SMX CNC Control
10.4" Color Active Matrix Screen
Auto Lubrication
Hi-Lo Speed Range
Manual and CNC Mode
Runs Proto Trak Conversational and G-Code
