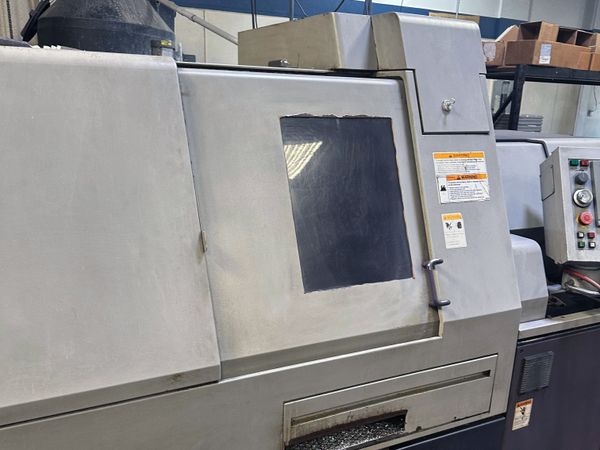

2004 CITIZEN L32

Max. Machining Length: 12.5?
Max. Front Drilling Diameter: .47?
Max. Front Tapping Diameter: M10
(w/tap & die)
Spindle Through-Hole Diameter: 1.41?
Main Spindle Speed: 200 – 8,000 rpm
Main Spindle Index: C-Axis
Rotary Tool Spindle Speed: 200 – 4,500 rpm
Max. Chuck Diameter of Back Spindle: 1.25?
Max. Workpiece Length for Front Side Collection from the Back Spindle: 5.9
Back Spindle Speed: 200 – 7,000 rpm
Back Spindle Index: 1 degree standard (C-Axis Optional)
# of Tools: 19
Live: 4
OD: 5
Front Drilling: 3
Back Drilling: 3
Tools for Back Drilling on Independent Tool Block: 4
Tool Size:
Gang Tool Post (tool): .63? x .63? x 5.11?
Gang Tool Post (sleeve): 1?
Back Tool Post (sleeve): 1?
Rapid Feed Rate (all axes): 20 m/min
Main Spindle Drive: 3.7/5.5kw
Back Spindle Drive: 1.5/2.2kw
Tool Spindle Drive: 1kw
Cutting Oil: 0.4kw

Cincom CNC
Chip Conveyor
Tool Presetter
Bar Feeder
Live Tooling
Sub Spindle
Y Axis
5 Axis
