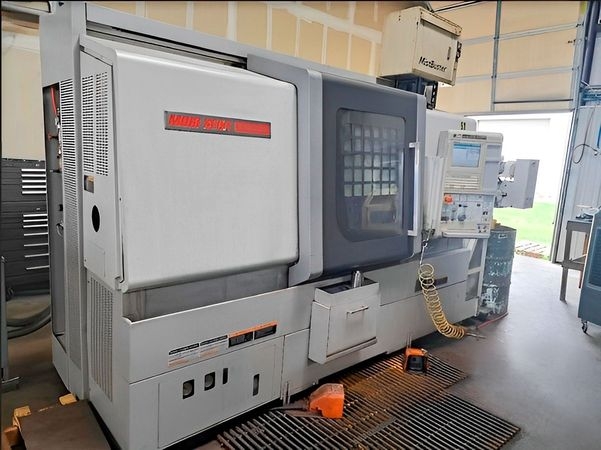

Located in the heart of Texas, we present a 2011 DMG MORI SEIKI NLX2500SY CNC Lathe in first-rate operational condition. This machine has served our shop dutifully and now waits for its new purpose with another owner, as we a...Read More
Notify Me:
Specs:
Chuck Size: 10"
Bar Capacity: 3.1"
X Axis Travel: 10.2"
Spindle Speed: 4,000 RPM
Spindle Motor: 25 HP
Z Axis Travel: 31.3"
Rapid Rate Z Axis: 1,181 IPM
Turret Tools: 12 Station
Rapid Rate X Axis: 1,181 IPM
Max Turning Dia: 18.1"
Max Turning Length: 27.7"
Max Swing: 23.2"
MAIN SPINDLE:
Main Spindle Speed: 4,000 rpm
Main Spindle Nose: A2-8
Main Spindle Bore: 3.5"
Main Bar Capacity: 3.1"
Main Spindle Motor: 25 hp
Travels (C Axis): 0.001 Deg
SUB-SPINDLE:
Sub Spindle Speed: 6,000 rpm
Sub Spindle Nose: A2-5
Sub Spindle Motor: 15 hp
Travels (B Axis, Sub-spindle): 28.9"
TURRET:
Turret Type: Block Style
Turret Positions: 12
Turret Index Time: 0.27 sec
Rotary Tool Spindle Speed: 10,000 rpm
Travels (Y Axis): +/- 2.0"
Rotary Tool Spindle Motor: 7.5 hp
Dimensions: 156" x 82.9" x 86.6"
Weight: 14,000 LBS
Bar Capacity: 3.1"
X Axis Travel: 10.2"
Spindle Speed: 4,000 RPM
Spindle Motor: 25 HP
Z Axis Travel: 31.3"
Rapid Rate Z Axis: 1,181 IPM
Turret Tools: 12 Station
Rapid Rate X Axis: 1,181 IPM
Max Turning Dia: 18.1"
Max Turning Length: 27.7"
Max Swing: 23.2"
MAIN SPINDLE:
Main Spindle Speed: 4,000 rpm
Main Spindle Nose: A2-8
Main Spindle Bore: 3.5"
Main Bar Capacity: 3.1"
Main Spindle Motor: 25 hp
Travels (C Axis): 0.001 Deg
SUB-SPINDLE:
Sub Spindle Speed: 6,000 rpm
Sub Spindle Nose: A2-5
Sub Spindle Motor: 15 hp
Travels (B Axis, Sub-spindle): 28.9"
TURRET:
Turret Type: Block Style
Turret Positions: 12
Turret Index Time: 0.27 sec
Rotary Tool Spindle Speed: 10,000 rpm
Travels (Y Axis): +/- 2.0"
Rotary Tool Spindle Motor: 7.5 hp
Dimensions: 156" x 82.9" x 86.6"
Weight: 14,000 LBS
Options:
M730
Chip Conveyor
Tool Presetter
Parts Catcher
Live Tooling
Sub Spindle
Y Axis
5 Axis
Chip Conveyor
Tool Presetter
Parts Catcher
Live Tooling
Sub Spindle
Y Axis
5 Axis
